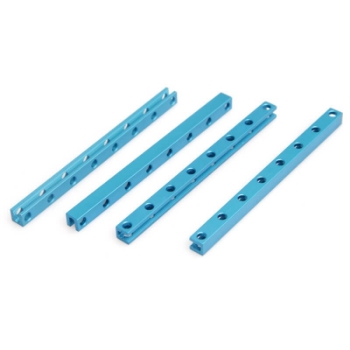

Makeblock Beam 0808 - 136mm Long

The Makeblock MG995 Servo Hub is a aluminium high quality part ideal for fitting JR standard, FUTABA standard servos.

The Makeblock 57BYG Stepper Motor Bracket can be used as the structural support or connection point for Makeblock 57BYG Stepper Motor.

Makeblock 42BYG geared stepper motor is a simple, but very powerful stepper motor with high output torque and response speed but low noise and energy consumptionhas better performance.

It comes with higher torque than 42BYG stepper motor. It can be used as the power motor of some high-performance machine.

Specification:

• Step Angle (degrees) :1.8
• Phase Current: 2.8A
• Wire Number: 4
• Motor Length: 56mm
• Ratio: 5.18:1
• Output Shaft: D shaft 8mm

Makeblock Beam0808's are frequently used parts within the Makeblock platform to build all kinds of mechanical structures. The Beam0808 series is a reliable structural component, available in varying lengths from 24mm to 504mm.

The Makeblock Me Compass is a 3-axis digital compass. The main chip is Honeywell HMC5883L. On-board regulator provides stable power for HMC5883L.

Me Slide Potentiometer is one type of potentiometer that can be used to control volume, light intensity, motor speed, movement control, etc. in interactive projects.

Features

• Compatible with the Arduino sensor expansion board;

• Three 4mm mounting holes and one RJ25 port for easy assembling;

• With one red power indicator and one blue potentiometer indicator;

• Anti-reverse connection protection feature.

How Does It Work?

This Me Slide Potentiometer can be combined with Me Orion (or other Arduino IO/sensor expansion board) in interactive projects. Move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. The VCC Me Slide Potentiometer supports vary from 3.3V to 5V.


Note

If you connect this module to Me Orion, please make sure you connect it to port 6, port 7 or port 8.

This Makeblock Kit contains frequently-used parts in building motion mechanisms.

Part List:

• 4x Link Rod
• 2x Shaft Connector-4
• 2x Timing Pulley18T
• 2x Timing Pulley 66T
• 2x Timing Pulley 90T
• 4x Timing Pulley Slice 90T
• 2x Timing Belt 123T
• 1x Timing Belt 216T
• 4x Threaded Shaft 4x39mm
• 4x Shaft Collar 4mm
• 10x Flange Bearing 4x8x3mm
• 24x Socket Cap Screw M4x14
• 12x Nut M4
• 8x Headless Set Screw M3x5
• 8x Plastic Rivet R4120
• 16x Plastic Ring 4x7x2mm

MEDS15 Servo Motor Bracket is specifically designed to attach the MEDS15 Servo to your maker project. Made with durability and versatility in mind, this bracket is made from 6061 aluminum that is 2mm thick.

Makeblock mini metal gear motor has a mini body, delicate gears and easy connector, and is widely used many DIY projects.

Makeblock has three different revolving speed for your choice.
