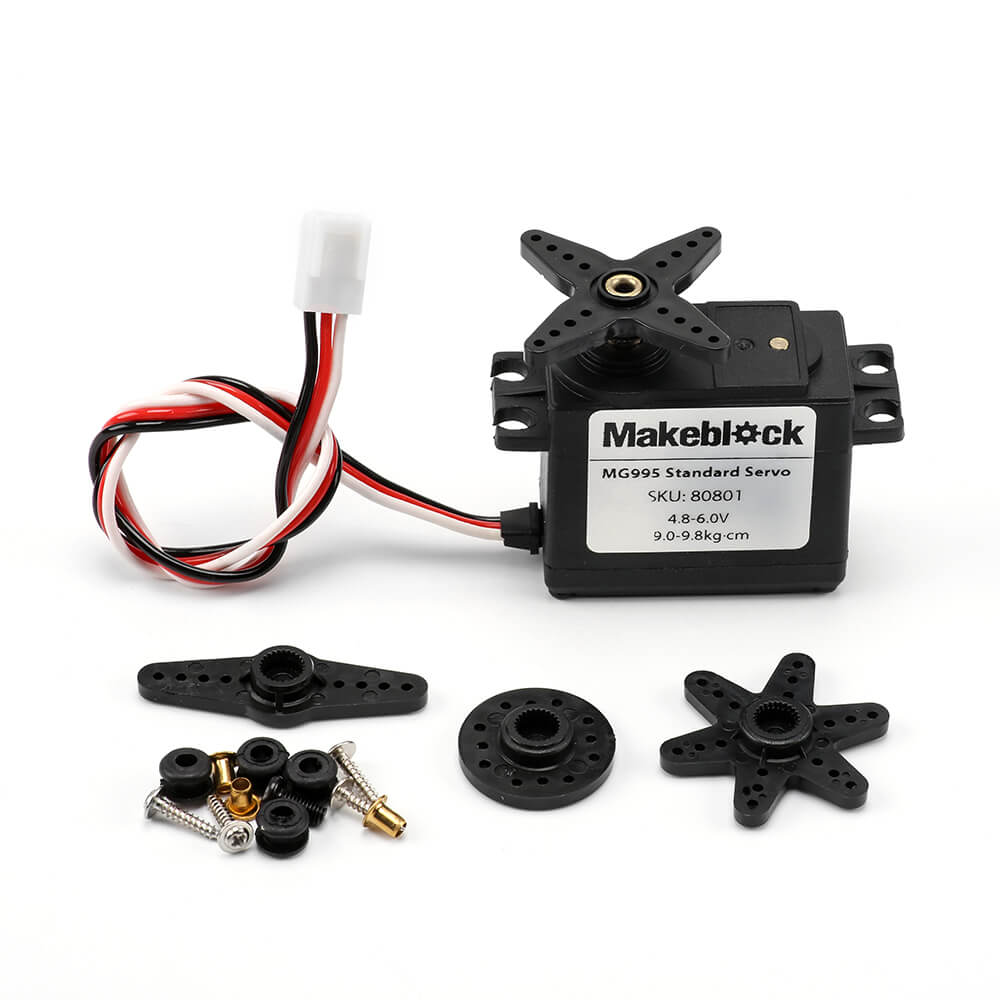

    Makeblock MG995 Standard Servo

    MG995 servo is a simple, commonly used standard servo for your mechanical needs such as robotic head, robotic arm. It comes with a stardard 3 pin power and control cable for easy using and metal gears for high torque.
    A Me RJ25 Adapter also help you to connect the servo with Me Baseboard or Makeblock Orion easily.

    PartList:

    • MG995 Standard Servo x 1
    • Mounting Screw x  1
    • Four Point Horn x  1
    • Six Point Horn x  1
    • Double Arm Horn  x 1
    • Circle Horn x 1
    • Rubber Grommets x 4
    • Phillips Screw x  4
    • Brass Eyelets x 4





    MFR Part #: 80801
    $14.18
    Availability: 1 in stock
    m Specification
    Size 40.4*19.9*37.5mm
    Weight 58g
    Gear type 5 Metal Gear
    Limit angle 180°±5°
    Bearing DUAL BB
    Horn gear spline ?
    Horn type Metal
    Case Engineering plastics(Polyamide)
    Connector wire FP: 240mm±5mm   JR: 300mm±5mm
    Motor DC motor
    Splash water resistance No

    Electrical Specification:

    Item Specification
    Operat voltage 4.8V
    Idle current 5mA
    No load speed 0.17sec/60°
    Runnig current 350mA
    Peak stall torque 9.0kg.cm
    Stall current 1500mA

    Control Specification:

    Item Specification
    Command signal Pulse width modification
    Amplifier type Digital controller
    Pulse width range 500?2500usec
    Neutral position 1500usec
    Running degree 180±2°(when 500?2500usec)
    Dead band width 4 usec
    Rotating direction Counterclockwise (when 500?2500usec)
