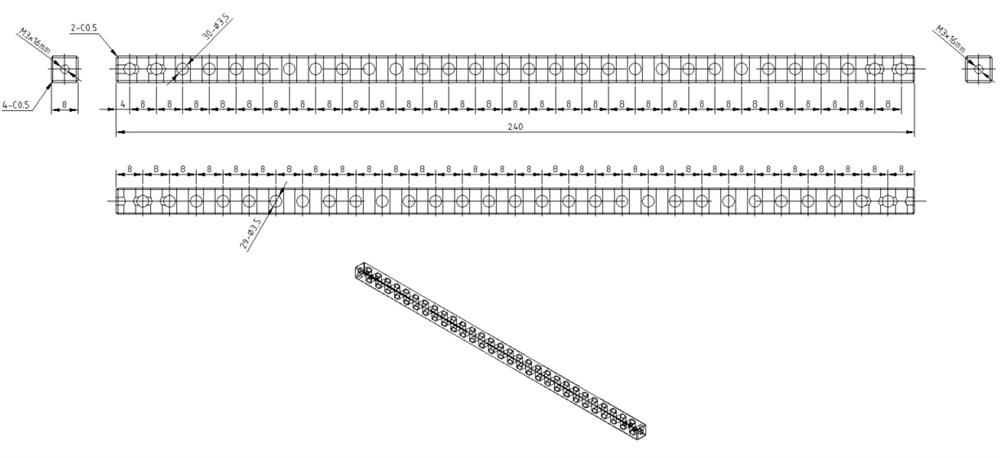

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems. Ideal for rapid prototyping.
- Material - Anodized 6061-T6 Aluminum
- Holes - 3.5mm diameter spaced 8mm apart
- Length - 240mm
- Step File
