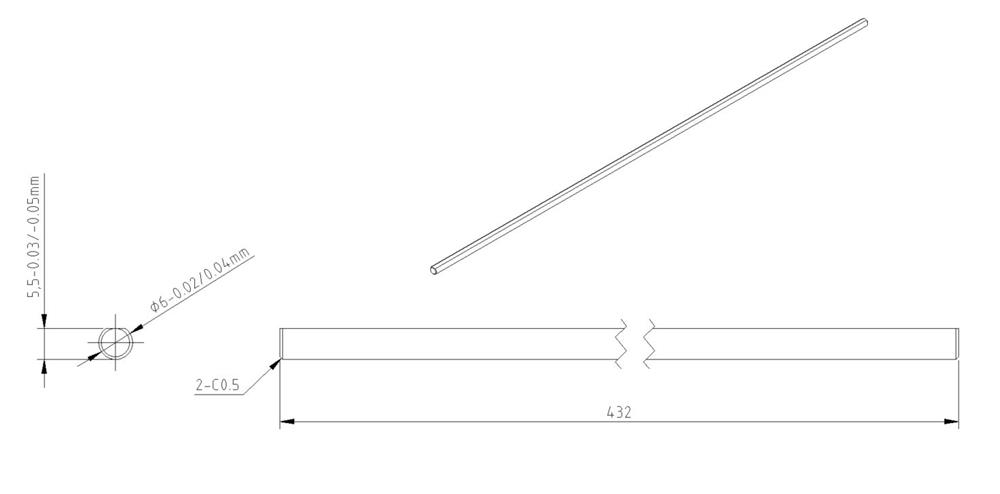

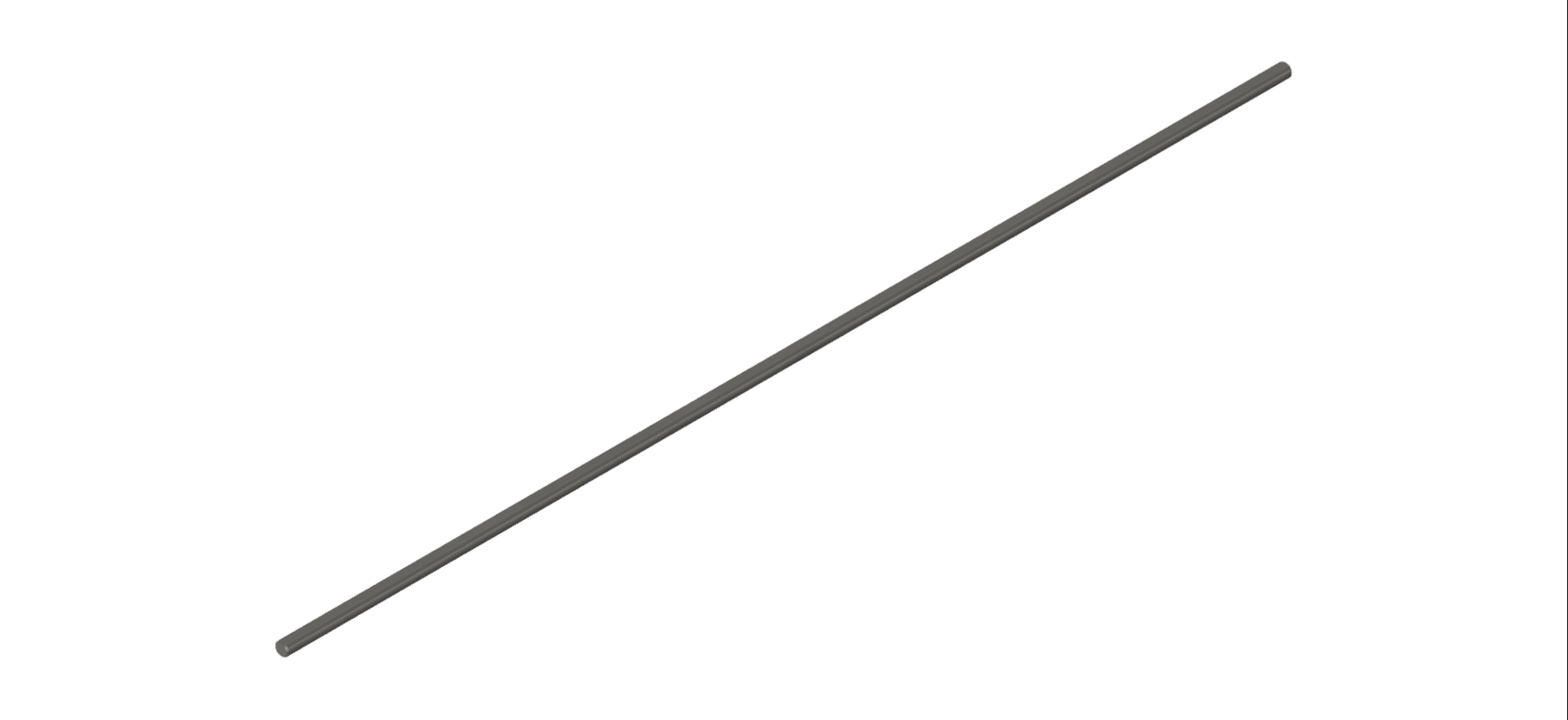

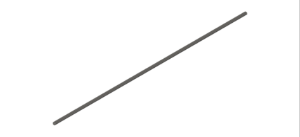

6mm x 432mm D-Shaft (2 pack)

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 96mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 70mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 35mm length
• 6mm OD
• 5.5mm to flat
• Step File

Includes,

• 2 x 76162-2 - 6mm x 432mm D-Shaft (2 pack)
• 2 x 76161-6 - 6mm x 96mm D-Shaft (6 pack)
• 2 x 76160-6 - 6mm x 70mm D-Shaft (6 pack)
• 1 x 76159-6 - 6mm x 35mm D-Shaft (6 pack)
• 1 x 76303-2 - Coupling 6mm ID D-Shaft, 12mm OD (2 pack)
• 2 x 76308-6 - Shaft Spacer Plastic 6mm ID x 10mm OD x 20mm L (6 pack)
• 3 x 76304-6 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)
• 2 x 76306-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 2mm L (24 pack)
• 2 x 76305-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM
