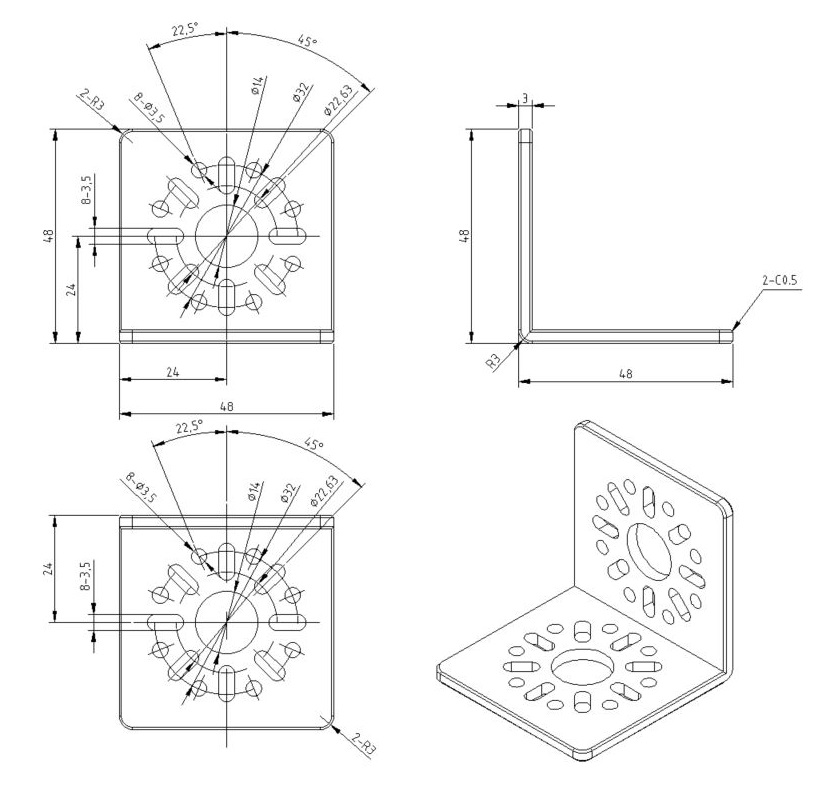

L Bracket (2 pack)

The Studica VMX FRC-compatible Training Bot (FRC Trainer) is a smaller, sturdy, lightweight, and less expensive robot than your typical FRC robot. If you have a large FRC team, often only a handful of students get to learn how to create and program your team’s costly competition robot.  The FRC Trainer solves this problem and is ideal for groups of two to three to participate in hands-on learning in a classroom environment.  Schools can equip their labs with multiple FRC Trainers, benefiting from the great value and compact size. Students can even take it home with them!

This affordable solution is intended for:

• FRC teams that want to learn and train on a smaller and more affordable robot,
• Schools looking for a way to teach FRC robotics in the classroom.
• Schools that want to teach coding in the classroom through robotics.

The FRC-compatible Trainer is an intelligent and autonomous robot that uses the VMX Advanced Robotics Controller which can be programmed in C++ and Java.  VMX’s multitude of modern digital communications interfaces and Linux-based operating system allow users to directly access most modern devices (e.g., Intel RealSense tracking and depth cameras and LIDAR).

VMX-Pi Key Use Cases and Hardware/Software Features and Benefits
VMI-Pi Key Use Case Document is available here

Studica accepts Purchase Orders from Schools and established companies, offering net 30 terms upon review and approval. Contact us at sales@studica.com for more information.

The Studica Robotics Expansion Pack includes U channels, flat brackets, L brackets, D-shafts, bushings, spacers, gears, screw caps, nuts and standoffs, ideal for your robotics designs.

The X Bracket is perfect for connecting four channels pieces together. Each of the 4 sections is 48mm wide and the overall dimmension is 144mm x 144mm.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The T Bracket is perfect for connecting two or three channels together. Each side is 48mm wide to fit on the U Channel, low profile channel or other brackets. The overall size is 144mm x 96mm

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside U Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File


Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The Studica Robotics Bracket Pack includes various degree brackets, flat brackets, L brackets, U brackets a T and an X bracket, ideal for your robotics designs.

The Studica Adjustable Angle Flat Bracket is perfect for connecting two channels pieces together at various angles. It is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Width - 48mm
• Length - 96mm
• Step File

The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 135 Degree Bracket is perfect for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Used for intake systems, elevator systems, or structure where 45 degrees is required. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM
