Motor Mount Plate Leaf

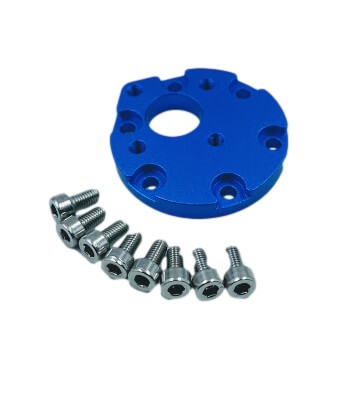

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.

• Step File Top
• Step File Bottom

Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Step File
