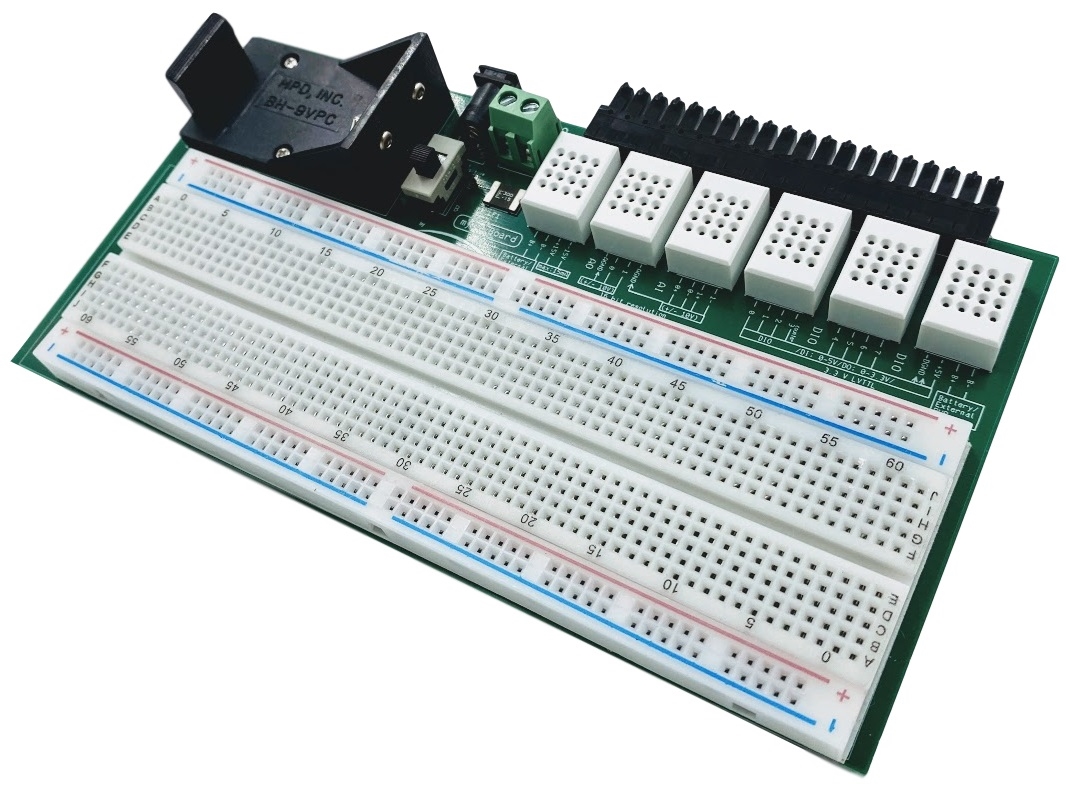

    myDevBoard - Prototype Board

    The myDevBoard is an accessory board designed to connect directly to the NI myDAQ hardware. The Protoboard consists of a prototyping space as well as each I/O line from NI myDAQ broken out through quad contact blocks to make wiring easier.



    Includes,

    • NI myDAQ terminal block and female headers
    • 9 V battery holder to add supplemental voltage and current
    • Includes switch to select between battery or external power using AC Adapter or bench top power supply. (Battery, AC adapter and bench top power supply not included)
    • 3 AMP Auto reset fuse
    • Segmented power rails on main bread board
    • Large ground plane underneath main bread board
    MFR Part #: 70752
    $44.99
    Availability: In stock
