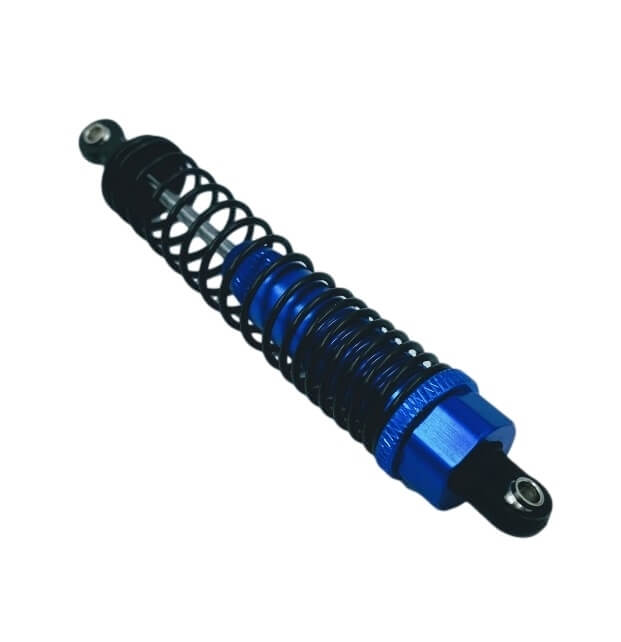

Shock Absorber, 1/10 Aluminum, 100mm (2 pack)

Specifications:

• Size: 1/10 standard car
• Material: Aluminum alloy
• Total length: 63mm
• Ball head to ball head: 55mm
• Diameter: 17mm
• Ball head hole diamter: 3mm

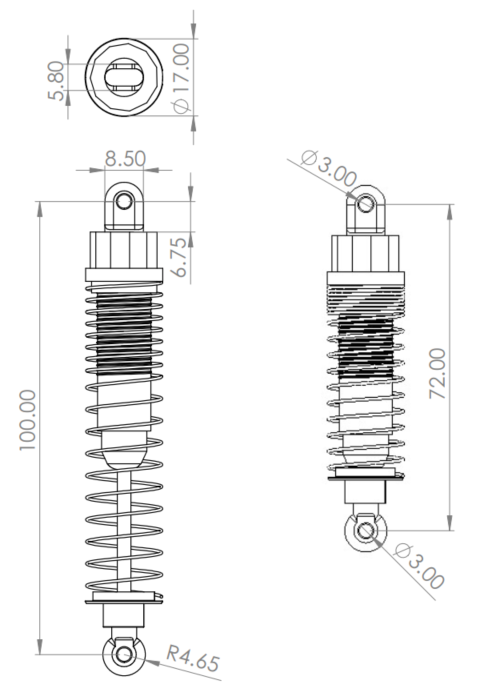

• Step File - Shock in compressed mode
• Step File - Shock in extended mode

The Studica Robotics All-Terrain Pack includes all-terrain tires, shock absorbers, D-shafts, flange bearings and shaft spacers, ideal for your robotics designs.

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adopter

The Studica Robotics D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axles.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 96mm length
• 6mm OD
• 5.5mm to flat
• Step File

The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 1 or 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm shaft. Mix and match various spacer lengths.

SPECIFICATIONS

• Material: Nylon
• OD: 10mm
• ID: 6mm
• Length: 1mm
• Step File
