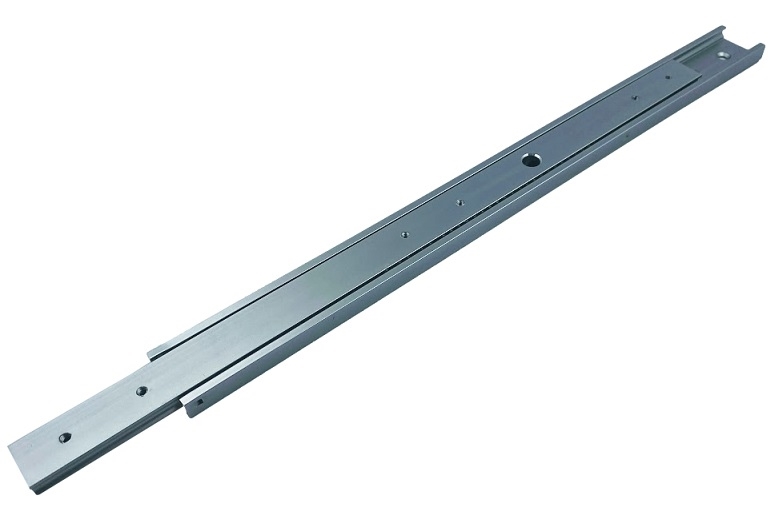

Slide Rail, 288mm Length, 180mm Stroke

The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 384m, with a 240mm stroke, creating a 530mm extended length.

• Width: 24mm
• Height: 7.2mm
• Length: 384mm
• Stroke: 240mm
• Extended length: 624mm
• Step files

The Studica Servo Arm Extended can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 56mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 33mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Height: 9mm
• OD: 30mm
• Material: 6061-T6 Aluminum
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 12mm
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6mm
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates. Ideal for rapid prototyping.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 432mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.08kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates. Ideal for rapid prototyping.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 336mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.06kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates. Ideal for rapid prototyping.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 288mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.051kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates. Ideal for rapid prototyping.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 240mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.043kg
• Step File
