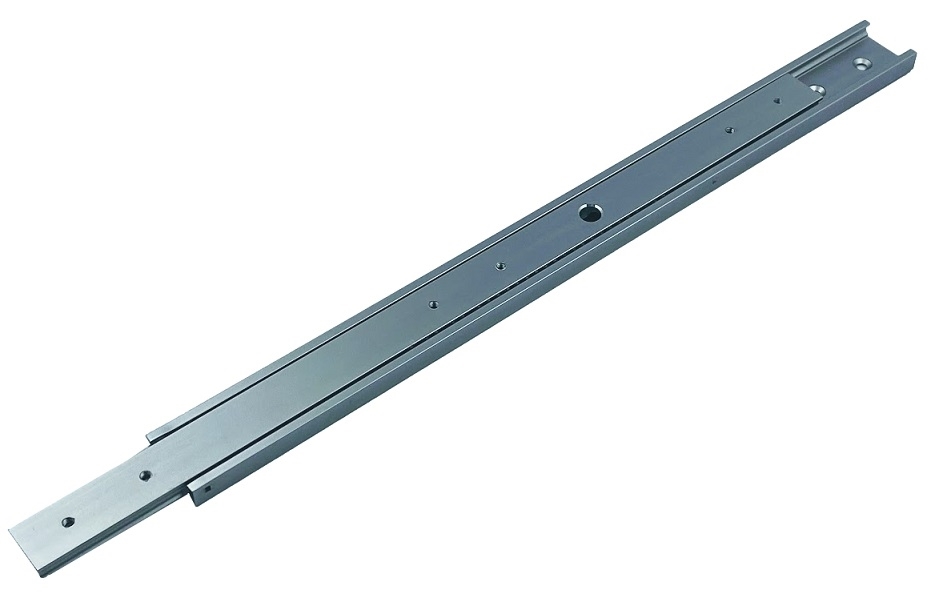

Slide Rail, 384mm Length, 240mm Stroke

The Studica Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating a 470mm extended length.

• Width: 24mm
• Height: 7.2mm
• Length: 288mm
• Stroke: 180mm
• Extended length: 468mm
• Step files

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates. Ideal for rapid prototyping.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 48mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.009kg
• Step File

This GT2 (also called 2GT) timing belt has a 2mm Pitch and 6mm width

Specifications:

• type: GT2 closed-loop 160mm
• pitch: 2 mm
• width: 6 mm
• material: neoprene rubber, fiberglass reinforced
• belt shape: circular tooth profile

The Studica Threaded Joiner Plate can be used to join two different structure components together, such as U Channel and brackets.

The Studica Threaded Pattern Plate can be used to join two different structure components together.

Rubber Grommets are made for the Studica Robotics channel and plates and/or any structure with a 14mm hole. Use it for protecting wire or as a bumper.

Specifications:

• Outside diameter: 18mm
• Inside Diameter : 11mm
• Hole fitting diameter: 14mm
• Thickness: 9mm
• Step File

The Studica U-Channel Bumper is connected to the end of the Studica 48mm U-Channel and helps remove sharp corners that can cause damage when the robot is bumping into other objects. It also creates an ecstatically clean finish to your robot.

Made of Nylon, the Studica Rubber Foot is used with the Studica Robotics building structure and for many other uses.

The M3 x 10mm Low Profile Screw with Kep Nut is a 304 Stainless Steel m3 Din 7991 Countersunk Hex Socket Flat Head Screw with a matching Kep Nut. This package is made for the Slide Rail, 288mm Length, 180mm Stroke and the Slide Rail, 384mm Length, 240mm Stroke

Includes,

• 6 - M3 x 10mm Low Profile Screw
  • 304 Stainless Steel
  • M3
  • Din 7991
  • Counter sunk hex flat head
• 6 - Kep nut
  • M3
  • 304 Stainless Steel Base
  • 420 Stainless Steel Crown

• • 150mm Length
  • 3 Position
  • TJC8 FH-MC on 2 Split Ends
  • TJC8 MH-FC on single end
  • Twisted Cable
  • Colors: White, Red, Black (red in middle)
  • 24AWG Guage
