MXP-MD2 Motor Driver and Sensor Adapter for NI myRIO

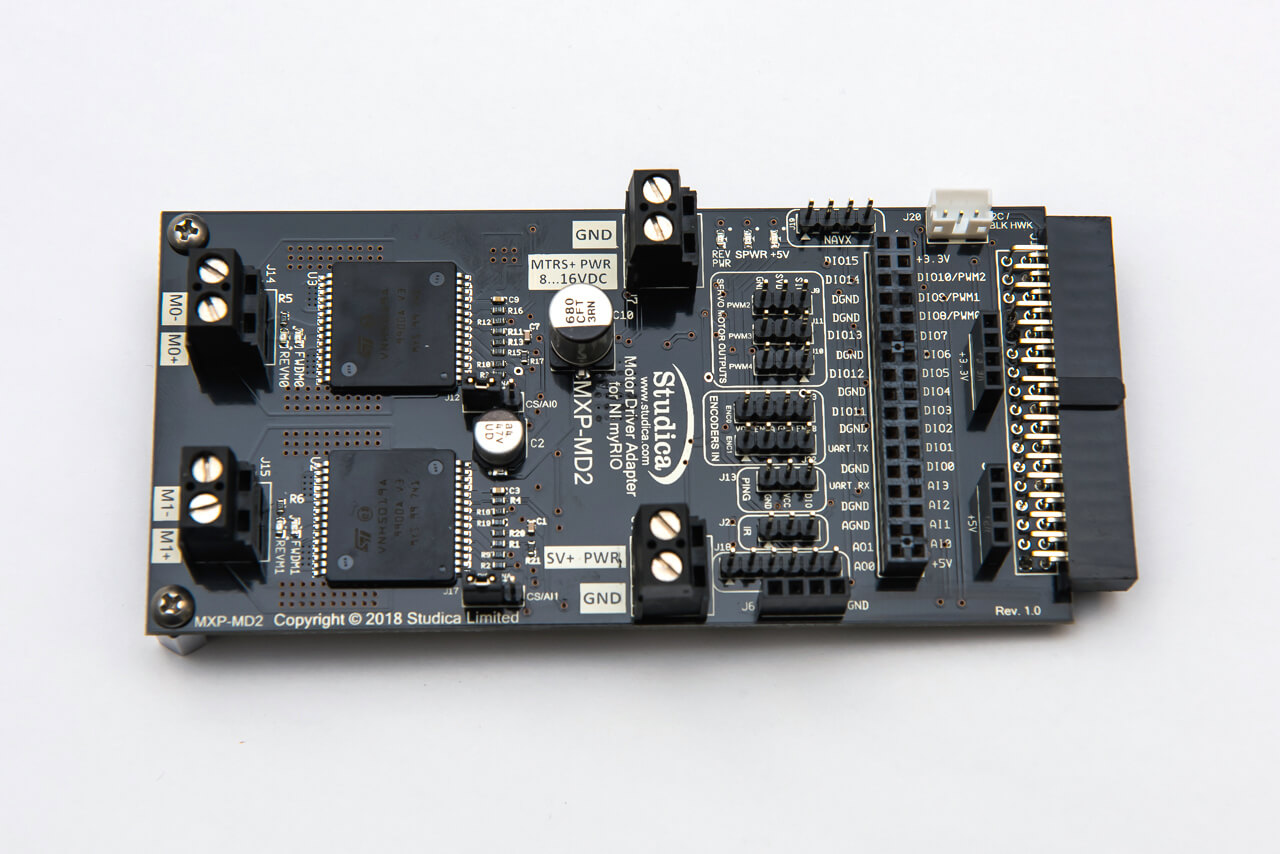

The MXP-MD2 is a next-generation high performance Motor Controller Driver and Sensor Adapter with many added features to make it ready to use in your robot project. The included VNH5019ATR-E Motor Controller ICs are very robust with high current output and several important protection features. Many other I/O options have been incorporated into this design to make it extremely easy to interface to several different sensors.

MFR Part #: 71010

$189.00

Availability: In stock

Qty:

Overview
Reviews

Features,

Includes 2 VNH5019 Motor Controller ICs,
- 2 Enable Inputs, 2 direction inputs, one PWM input per channel up to 20Khz
- Up to 12A Continuous output per channel, 30A peak current short ms duration
- Under-voltage, over-voltage, reverse-voltage protection
- Thermal Shutdown protection
- Current Limit protection
- Current Sense Output Proportional to Motor Current (approx. 140 mV/A)
- Loss of Ground and Loss of Vcc Protection
- Protection against short to Ground and short to Vcc

Specifications,

3V-compatible inputs
Directly interfaces with myRIO MXP Port
8-16V DC Battery Input Terminal, J7, (GND, MTRS+ PWR)
Jumper Selectable Current sense feedback from the VNH5019 Motor ICs, J12, J17
Reverse Power LED Indicator
FWD and REV Motor Direction LED Indicators
3 Servo Headers, J9, J10, J11, (SIG, SVDC, GND)
1 Parallax Ping Sensor Port, J13, (GND, VCC, DIO)
1 Sharp IR Port, J21, (AI0, VCC, GND)
1 LSB Port, J18, (VCC AI0, AI1, AI2, AI3, GND)
1 NavX Port, J19, (VCC, SDA, SCL, GND)
2 Encoder Ports, J22, J23, (VCC, ENCB, GND, ENCA)
1 I2C Port, J20, (NC, SCL, SDA)
Built in 5V 3A voltage Regulator
3.3V Power Rail Header, J3, from myRIO
5V Power Rail Header, J4, from onboard regulator
GND Rail Header, J6
Separate Servo Power Input, J8 (SV+ PWR, GND)
