Quick Summary: Streamline your FTC robot intake systems with the Studica Robotics Intake Hub Kit. It simplifies building FTC robot intake systems by reducing time spent on CAD, 3D printing, and prototyping. Made from durable 6061-T6 aluminum, the kit is reliable, easy to assemble, and designed to minimize points of failure, helping teams focus on innovation, strategy, and performance.
In the fast-paced world of competitive robotics, teams constantly face the challenge of balancing innovation with efficiency. Robotics teams love intake systems and they are widely used in robotics competitions like the FIRST® Tech Challenge (FTC) because they are crucial for many robots to pick up and move objects. However, creating an intake system can be both time-consuming and expensive. The time and resources required for prototyping, CAD design, and 3D printing can slow down even the most experienced teams, putting them at risk of falling behind. This is where the Intake Hub Kit from Studica Robotics makes the difference. By providing a cost-effective, reliable, and efficient solution, teams can streamline their building process and focus on creating a winning robot.
Transform Your Intake Systems
The Intake Hub Kit is designed to transform how you build intake systems for robot projects and competitions like FTC. This innovative kit saves you valuable time and resources, eliminating the need for extensive prototyping, CAD design, and 3D printing.
Built to Last
Unlike 3D-printed intake hubs, which can strip or fail under repeated stress, the Studica Robotics Intake Hub is made from durable 6061-T6 aluminum. This reduces potential points of failure, ensuring your intake system performs reliably throughout the season, even under heavy use. With its cost-effective and reliable design, you can quickly assemble your intake system and concentrate on refining other critical aspects of your robot. Experience the perfect blend of innovation and convenience. Order your Intake HEX-Shaft Hub Kit or Intake D-Shaft Hub Kit today and elevate your FTC robot to the next level!
The Intake Hub Kit

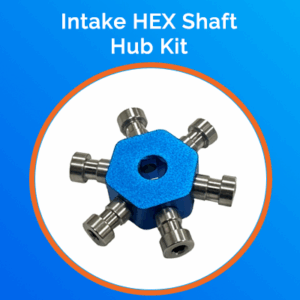

Now available with a 6mm D-shaft Bore or versatile Hex Bore option, the Intake D-Shaft Hub Kit and the Intake HEX-Shaft Hub Kit are crafted to integrate with silicone rubber tubing (sold separately) seamlessly. This combination creates a straightforward yet robust intake system.
Specifications:
- Main Piece: Hex width of 20.78mm and thickness of 10.0mm.
- Tapped Holes: Six M6 tapped holes and one M4 tapped hole for an M4 set screw.
- Diameter: 6.0mm D hole, additional dimension Φ7.5mm14.0mm.
- Material: AL6061-T6 aluminum for strength and long-lasting performance.
- Pins: Six pins per pack, each with an M 64.0mm thread, made from SS303 material.
Example Applications for Intake Systems:
Multi-Intake Hub Mechanism:
In this example, we created an intake system using multiple Intake Hub Kits with silicone rubber tubing attached to the screw inserts. Powered by a motor with a belt and pulley, it can be a part of an arm that slides in and out of the robot’s frame or in a stationary position. This system is ideal for picking up difficult items or gathering items in large quantities. The tubing length can be adjusted to suit the robot’s needs.
Frequently Asked Questions:
What material is the Intake Hub Kit made from?
The intake hubs are made from 6061-T6 aluminum, providing durability and long-lasting performance under repeated use.
Can I use multiple hubs together?
Yes! Multiple kits can be combined to create robust multi-intake systems capable of picking up large quantities or tricky game elements.
Do I still need to 3D print parts?
No. The Intake Hub Kit eliminates the need for 3D printing or extensive prototyping, allowing you to build intake systems faster and more reliably.
What sizes are available?
The kits come in 6mm D-Shaft or HEX-Shaft Bore options to integrate seamlessly with silicone tubing.
What types of intake systems can I build with it?
You can build single roller intakes for basic game pieces or multi-intake hub mechanisms for more complex collection systems.
How does the Intake Hub Kit from Studica Robotics reduce points of failure?
Unlike 3D-printed parts that can strip or break under stress, the aluminum construction of the Intake Hub Kit ensures reliable performance and fewer system failures.
👉 Order Your Intake Hub Kit Today
In conclusion, the Intake D-Shaft Hub Kit and Intake HEX-Shaft Hub Kit from Studica Robotics is a transformative solution for robotics teams looking to simplify the construction of intake systems. If you are competing in the FIRST® Tech Challenge, this kit offers a streamlined, cost-effective approach without requiring CAD work or 3D printing. With its easy integration, reliable performance, and durable aluminum construction, the Intake Hub Kit empowers you to focus on innovation and efficiency, giving your robot a competitive edge! Studica Robotics offers a variety of robot parts and kits for FTC teams.
