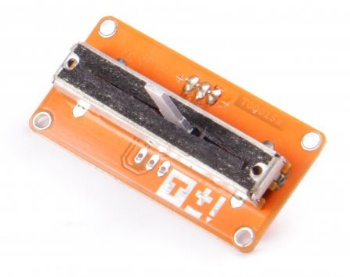

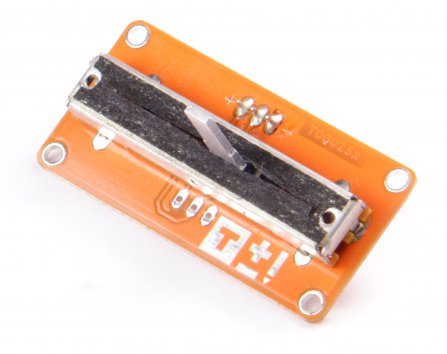

TinkerKit Linear Potentiometer module is a commonly used variable resistor. This module outputs 5v when the slider is at one end and 0v when moved in the opposite way. When connected to an input on the Arduino using the TinkerKit Shield, you can expect to read values going from 0 to 1023.This module features a 4k7 Ohm linear potentiometer, a signal amplifier, the standard TinkerKit 3pin connector, a green LED that signals that the module is correctly powered and a yellow LED whose brightness changes according to the position of the potentiometer.
This module is a sensor. The connector is an output, which must be connected to one of the input connectors on the TinkerKit Shield.
