Studica Robotics has just released helical bevel gears and Hex motion components! These exciting motion components are designed to allow you to optimize for speed, torque, and precision. They offer superior performance and durability making them ideal for robotics competitions and classroom learning. Let’s take a closer look at the benefits of helical gears and explore the HEX shaft components now available.
What Are Bevel Gears Used For?
Bevel gears are essential components used for transmitting power between intersecting shafts, typically at a 90-degree angle. They play a vital role in mechanical systems that require a change in the direction of rotation, ensuring seamless motion control. The new helical gears from Studica Robotics offer significant advantages over straight bevel gears. These spiral bevel gears have teeth cut at a helical angle. This unique design operates more quietly and provides several powerful benefits. Let’s take a closer look.
Advantages of Helical Bevel Gears
The introduction of the helical (spiral) bevel gear offers numerous advantages over the traditional straight-toothed bevel gear, making them ideal for robotics applications and teaching concepts like gear ratios and power transfer.
✅ Higher Load Capacity – Angled teeth distribute force more evenly, increasing strength and reducing wear.
✅ Improved Efficiency & Durability – Smoother meshing reduces backlash and ensures long-lasting performance.
✅ Precision & Control – Gradual engagement of teeth enhances accuracy for applications requiring fine movement.
Helical (Spiral) vs. Straight Bevel Gear Comparison
|
|
Helical (Spiral) Bevel Gear
|
Straight Bevel Gear
|
| Features:
Higher Load Capacity |
Angled teeth distribute forces more evenly across multiple contact points, increasing the overall strength and load-bearing capacity. | Straight-toothed gears concentrate force on fewer teeth, leading to increased wear and potential tooth failure under heavy loads. |
| Increased Efficiency and Durability | Lower stress per tooth enhances longevity and minimizes the risk of breakage or deformation. Smooth torque transmission results in improved efficiency and reduced backlash. | Higher stress per tooth can lead to premature wear and failure. |
| Reduced Backlash | The gradual engagement of helical teeth minimizes play between gears, ensuring precision in applications requiring accurate movement. | Straight-toothed bevel gears typically exhibit higher backlash, leading to unwanted movement and reduced efficiency. |
| Higher Speed Capability | Smoother motion and better load distribution allow helical bevel gears to operate at higher speeds without excessive wear or noise. | Straight-cut gears are noisier and experience more vibration, reducing efficiency and lifespan. |
New Helical Bevel Gears Available from Studica Robotics
 |

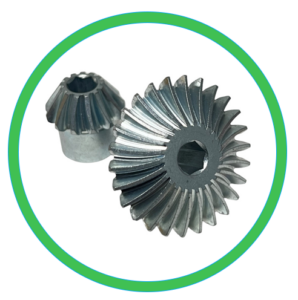

🔹 13 and 26 Tooth Hex-Shaft Helical Bevel Gear Set #77223H
Perfect for 1:2 or 2:1 gear ratios, giving your robot the flexibility to increase speed or torque efficiently. This set is also available in D-Shaft. View 13 and 26 Tooth D-Shaft Helical Bevel Gear Set #77223D.
|
 |

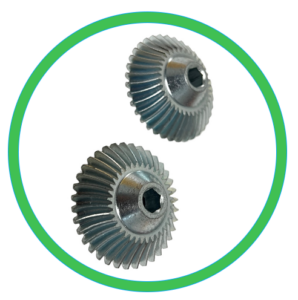

🔹 36 Tooth Hex-Shaft Helical Bevel Gear 1:1 Set #77224H
Designed for seamless power transfer between perpendicular shafts, this set ensures precise motion control while maintaining speed and efficiency. This set is also available in D-Shaft. View 36-Tooth D-Shaft Helical Bevel Gear 1:1 Set #77224D.
|
Applications in Robotics
The new Helical Hex Gears and motion components can be utilized in various FTC robotics applications, offering reliability and efficiency across different motion systems:
- High Torque Applications: Ideal for arms, lifts, and mechanisms requiring smooth and precise torque transmission at maximum efficiency.
- High Speed Applications: Perfect for active intakes and drive bases, ensuring optimal load distribution and minimal wear and tear under different loads.
By integrating these advanced gears into your robotics designs, teams can achieve greater control, efficiency, and durability, ensuring competitive performance in the field.
HEX Shaft Components

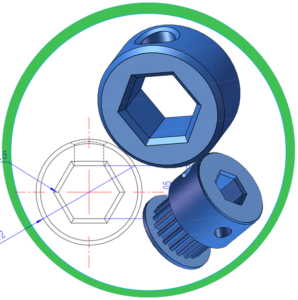

A reliable robot starts with high-quality motion components. Our HEX motion components offer the strength, precision, and versatility needed to tackle any robotics challenge. While both Hex Shaft and D-shaft components are used in robotics, they generally outperform D-shaft bores due to their superior strength and more secure engagement. You can refer to this link for an article that compares Hex Shaft and D-Shaft components to help you better understand why Hex generally outperforms D-shaft bores.
- Hex Shaft Axles & Shafts: Strong, reliable support for high-torque applications.
- Hex Bearings & Bushings: Reduce friction for smoother rotation.
- Hex Collars & Couplings: Secure components and extend shaft reach.
- Hex Gears & Hubs: Optimize power transmission with secure connections.
- Hex Pulleys & Spacers: Ensure smooth, controlled motion & proper component alignment.
Conclusion
It’s time to unlock precision and power! Give your robot the edge it needs with our new helical bevel gears and Hex motion components—engineered for peak performance. Upgrade your FTC robot or classroom robotics program today and experience the difference!
