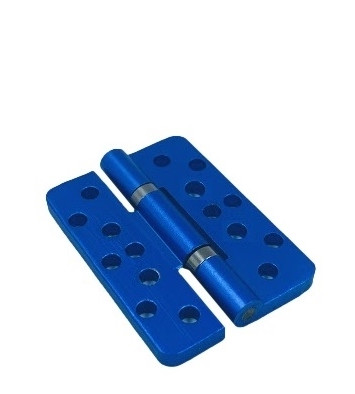

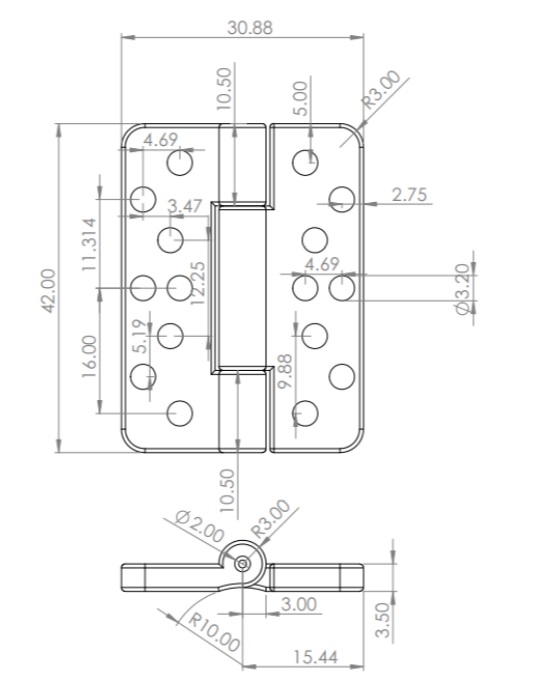

Made from aluminum and anodized in blue, the Studica Robotics 42mm Hinge with Bearings connects to the Studica structure hole pattern such as the channel, plates, and beams. The holes are 3.2mm diameter to use with the M3 screws.
The Studica Robotics 50mm (2") orange Drive Wheel with a durometer of 40A can be used as a simple wheel providing good traction on carpet and tile flooring. The drive wheel can also be used for intake systems and with 1/2" hex shafts or 6mm Shaft Hubs to connect 6mm D-Shaft Axles.
· 450mm Length
· 3 position
· TJC8 MH-FC on one end
· TJC8 FH-MC on the other end
· Twisted cable
· Colors: White, Red, Black (red in middle)
· 24AWG Guage
The Studica Robotics Intake D-Shaft Hub Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Can be used with the Silicone Rubber Tubing #76410 (sold separately).
150mm Blue Zip Tie, 100 pack, can be used for wire management.
Specifications:
The Studica Robotics 100mm Flex Wheel (4"), with a 25mm axial width can be used for intake systems and conveyors with your robotics design builds.
A pack of 100 Studica Robotics M3 Nyloc Nuts for robotics design.
This GT2 (also called 2GT) timing belt has a 2mm Pitch, 6mm width, and open 1000mm in length. Use any of the GT2 pulleys from Studica and the clamp kit.
The Studica Robotics Rubber Grommets (10 pack) are made for channels and plates and/or any structure with a 14mm hole. For use to protect wire or as a bumper.
The Studica Robotics Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch. Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.
