    Cypher MAX Through Bore Encoder

    Be the first to review this product

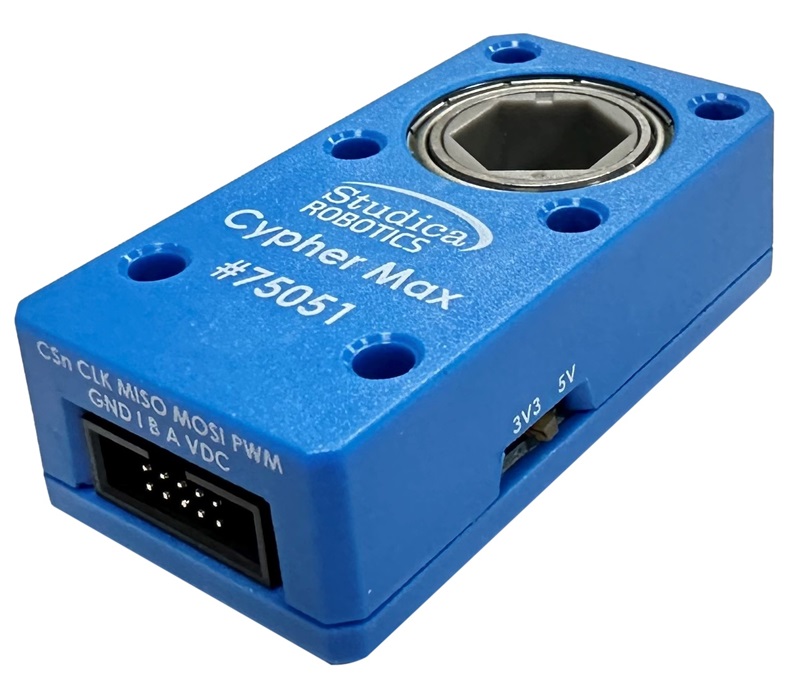

    This versatile rotary sensor offers a comprehensive solution for measuring both relative and absolute positions, thanks to its ABI quadrature output and absolute position pulse output capabilities. The encoder is thoughtfully designed with a standard 3/8-inch Hex Through Bore, complete with strategically placed mounting holes to seamlessly integrate into various multi-channel systems.



    Enhancing its adaptability further, the package includes interchangeable inserts, allowing you to effortlessly convert the 3/8-inch hex to a 6mm D-Shaft, 5mm hex, or 7mm hex, providing you with exceptional flexibility for your application needs.



    Great for use in an FTC Odometry system along with our 38mm omni wheel.

    MFR Part #: 75051
    $47.99
    In stock

    Enhancing its adaptability further, the package includes interchangeable inserts, allowing you to effortlessly convert the 3/8-inch hex to a 6mm D-Shaft, 5mm hex, or 7mm hex, providing you with exceptional flexibility for your application needs.

    Specifications:

    • Quadrature Output: A, B, I
      • 2048 Counts per Revolution
    • Absolute Output: PWM
      • Resolution: 12bit
      • Frequency: 546 Hz (Typ), 490 Hz (min), 603 Hz (max)
      • Frame Width: 4119 PWM Pulses
        • Start: 12 PWM Pulses (All High)
        • Error: 4 PWM Pulses (Low if error)
        • Data: 4095 Pulses
        • End: 8 PWM Pulses (All Low)
    • 3.3V and 5V compatible (selectable via switch on side)
    • Max current draw: 100mA
    • Factory calibrated zero position.
    • Connector: 10 Position 1.27mm Right Angle
    • Default Bore: 9.525mm (0.375”) Hex

    • Included Cables:
      • Absolute Cable (1.27mm to 2.54mm 3-pin Female Dupont)
      • Quadrature Cable (1.27mm to 2.54mm single-pin Female Dupont)
      • FTC Cable (1.27mm to 4-pin JST PH)
      • Programming Cable (1.27mm to 2.54mm single pin Female Dupont)
    • Included Inserts:
      • 7mm Hex
      • 5mm Hex
      • 6mm D-Shaft
    • STEP files
