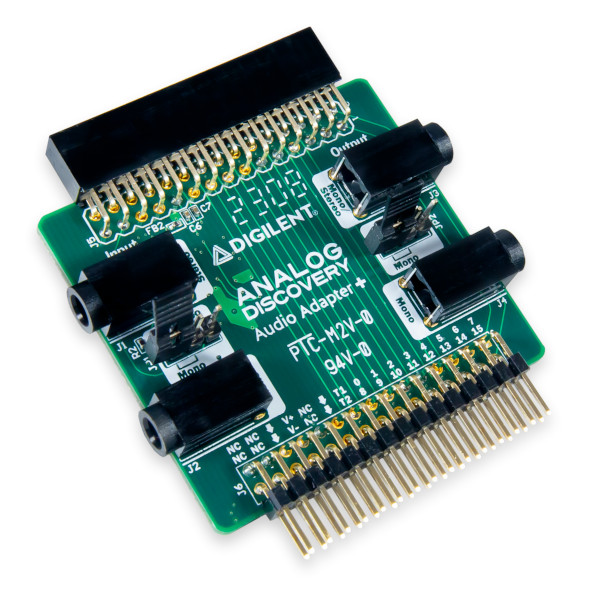

    Analog Discovery Audio Adapter+

    Be the first to review this product

    The Audio Adapter+ is a module that allows the Analog Discovery 3 to capture and analyze audio signals from external sources and easily connect audio signals generated by the device to audio devices like headphones and speakers

    MFR Part #: 410-418
    $29.99
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    In stock

    Features

    • Provides audio connectivity via 3.5 mm jacks for both Scope and Wavegen
    • Inputs and outputs can independently use 2 mono jacks or 1 stereo jack, selected via jumpers
    • Active circuitry powered by the Analog Discovery 3 power supplies
    • Pass-through connector for all other Analog Discovery 3 signals, including Digital I/O, Triggers, and Power Supplies
    • Compatible with the Analog Discovery 3
    • Product Compliance:
      • HTC: 8537109170
      • ECCN: EAR99

    What's Included

    • Audio Adapter+ for Analog Discovery
    • 1x male-to-male audio cable with 3.5 mm audio jacks
    • Custom Anti-Static Packaging
