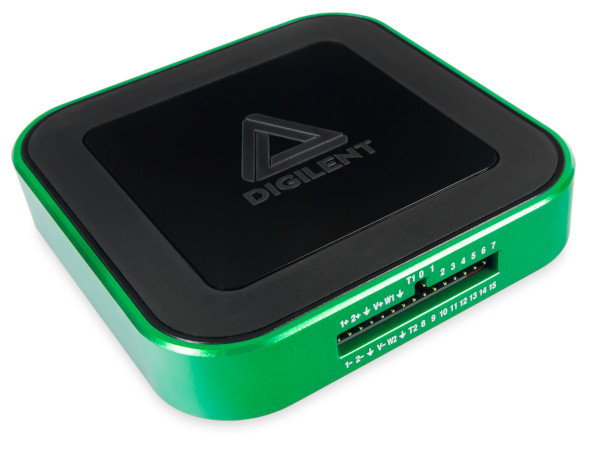

Like its predecessor, the Analog Discovery 3 is a portable USB-powered test and measurement device, though it now features an upgraded USB-C® connection. It’s lightweight and small enough to fit in your pocket or backpack, so it becomes an exceptional companion for any engineer.
The Analog Discovery 3 boasts a larger-than-ever buffer size, allowing more data to be sent through the waveform generator and received through the mixed signal (analog and digital) oscilloscope. It also has an increased sampling rate of up to 125 MS/s on all channels and a more potent power supply (up to 800 mA). The larger buffers allow you to capture longer records at high resolution and enable more complex AWG signals. Modulated AWG signals also take advantage of larger buffers, and more complex modulated signals have been added including phase modulation and summation.
This iteration of our most popular Analog Discovery digital oscilloscope also allows engineers access to new powerful features in WaveForms like the FIR (finite impulse response) Filter. Through the use of optional FIR filters on Oscilloscope input channels, users can reduce the amount of high frequency noise that could affect the quality of their measurements. Digital loopback of captured signals to the AWG, both filtered and unfiltered, is now supported. AWG output signals can now also be recaptured through digital loopback and displayed alongside signals returned from a circuit under test.
The AD3 is built on the next generation Xilinx FPGA, opening up even more features and future enhancements over time with software updates.
Oscilloscope:
- Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter
- User-configurable hardware input filters
- FFT, Spectrogram, Lock-In Amplifier, Additional Software Input Filters, Eye Diagram, XY Plot views, and more, in the WaveForms application
Arbitrary Waveform Generator:
- Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
- Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more
Logic Analyzer and Pattern Generator:
- 16 digital I/O channels at up to 125 MS/s per channel
- Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
- SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more
Programmable Power Supplies:
- 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
- Up to 800 mA per channel when used with an auxiliary power source
Additional Features:
- Additional software instruments including:
- Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
- Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
- Data logging, Voltmeter, in-app scripting
- SDK for hardware control in C, C++, Python, and other languages
- Support for LabVIEW and MATLAB
- And much more
Product Compliance:
*Note: To achieve maximum bandwidth, use of the BNC Adapter for Analog Discovery is required.
What's Included
Software - What is WaveForms?
WaveForms is the free software application for the Analog Discovery 3 and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The Analog Discovery 3 communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.
The following instruments are available in the WaveForms application for the Analog Discovery 3:
- Oscilloscope
- Waveform Generator
- Power Supplies
- Voltmeter
- Data Logger
- Logic Analyzer
- Pattern Generator
| - Static I/O
- Spectrum Analyzer
- Network Analyzer
- Impedance Analyzer
- Curve Tracer
- Protocol Analyzer
- Script Editor
|
For even more customization potential, the WaveForms Software Development Kit (SDK) can be used to create custom applications and scripts in Python, C, and additional languages. The Analog Discovery 3 is also compatible with LabVIEW and the Mathworks MATLAB Data Acquisition Toolbox.
