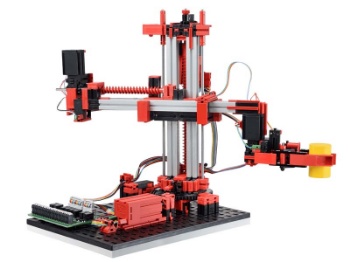

fischertechnik 3-D Robot 24V (3 axis)

3-axis robot with gripping forceps. Robot quickly and precisely positions workpieces in three -dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

MFR Part #: 511938

$1059.95

In stock

Qty:

Overview
Reviews

Degrees of freedom:

Shaft 1: Rotation 180°
Shaft 2: Forward/back 90 mm
Shaft 3: Up/down 150 mm

The fischertechnik 3-D Robot includes:

2 XS Motors
2 Encoder Motors
4 Limit switches, 2 pulse sensors for path measurement
8 Digital inputs
8 Outputs: 4 Motors clockwise/counterclockwise rotation,
Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O.

NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

3-axis robot with gripping forceps. Robot quickly and precisely positions workpieces in three -dimensional space.

Degrees of freedom: Axis 1: turn 180 degrees. Axis 2: forward/back 90 mm. Axis 3: raise/lower 150 mm.

Components on this model include 2 XS motors, 2 encoder motors, and 4 push button limit switches.

Dimensions: 18.9 x 15.75 x 8.66 inches

Weight: 5.95 lbs.
