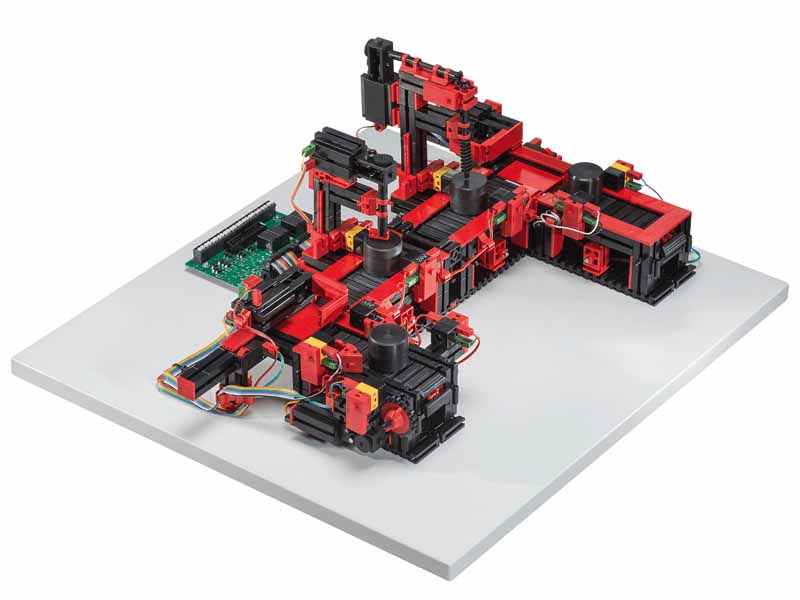

    fischertechnik Indexed line with 2 Machining Stations 24V

    U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections. Fully assembled training model for use with PLC (Programmable Logic Controllers) and PLC programming software.

    MFR Part #: 96790
    $1204.95
    In stock

    Conveyor belt, arranged in U-shape, for intermittent transport and for the machining of several workpieces.

    The fischertechnik Indexed Line with 2 Machining Stations 24V model includes:

    • 1 drilling station
    • 1 milling station
    • 4 conveyor belts
    • 8 XS motors
    • 4 push button limit switches (potential free)
    • 5 LED light barriers
    • 9 digital inputs
    • 10 outputs--6 motors with one direction of rotation, 2 motors counter-clockwise, clockwise rotation
    • Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O.

    NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware



    U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections.

    Components on this model include 4 conveyor belts, 8 XS motors, 4 push button limit switches, 5 phototransistors, and 5 LED Light barriers.

    Dimensions: 18.7 x 17.72 x 10.63 inches

    Weight: 7.82
