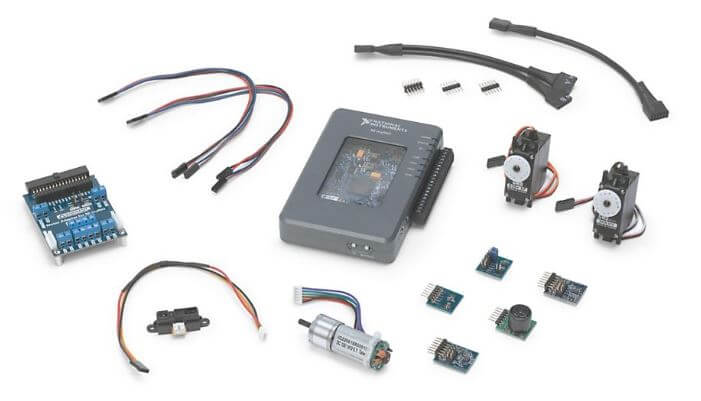

NI myRIO Mechatronics Accessory Kit

The MXP-MD2 is a next-generation high performance Motor Controller Driver and Sensor Adapter with many added features to make it ready to use in your robot project. The included VNH5019ATR-E Motor Controller ICs are very robust with high current output and several important protection features. Many other I/O options have been incorporated into this design to make it extremely easy to interface to several different sensors.

The National Instruments myRIO-1900 is a portable reconfigurable I/O (RIO) device that students can use to design control, robotics, and mechatronics systems.


For motor control, use the MD2 Motor Driver

The NI myRIO Embedded Systems Accessory Kit contains common sensors, devices, and a display.

Required for APUS courses: ELEN430, ELEN435, ELEN436, ELEN440, ELEN498, ELEN499

(NI myRIO not included)

The NI myRIO Panel Mount Kit helps you quickly mount NI myRIO to a wall or integrate it in a project design. Created specifically for NI myRIO, the metal mounting panel allows NI myRIO to snap into place and be held securely.


• Easily mount NI myRIO to a wall or project
• NI myRIO snaps into the metal mounting panel
• For enclosed version of NI myRIO only

NI myRIO Starter Accessory Kit Contents

• Barrel connector with leads
• Assorted capacitors
• Diodes
• 7-segment display
• Mechanical rotary encoder
• Photo interruptor (light sensor with LED)
• Assorted op-amps
• Assorted LEDs
• Small DC motor (1 VDC to 3 VDC, no load speed: 6600 rpm)
• Microphone with audio jack
• MXP Breadboard Accessory
• Potentiometer (500 k?)
• Relay
• Assorted resistors
• Piezoelectric sensor
• Photocell
• 2 Hall effect sensors (latch and switch)
• Buzzer
• Assorted switches (DIP, slide, and rotary)
• Thermistor (NTC: 10 k?, 25 degrees)
• Assorted transistors
• Force sensing resistor
• Wire kit

The Stratom X-HUB is a USB and Ethernet hub for myRIO. X-HUB is inserted into the top of myRIO, and is styled for a seamless look. It gives myRIO users access to an Ethernet port and two extra USB ports for a total of three USB ports. The power cable plugs directly into X-HUB to power both X-HUB and myRIO. The USB device cable is also inserted directly into X-HUB with the same functionality as plugging directly into myRIO.
