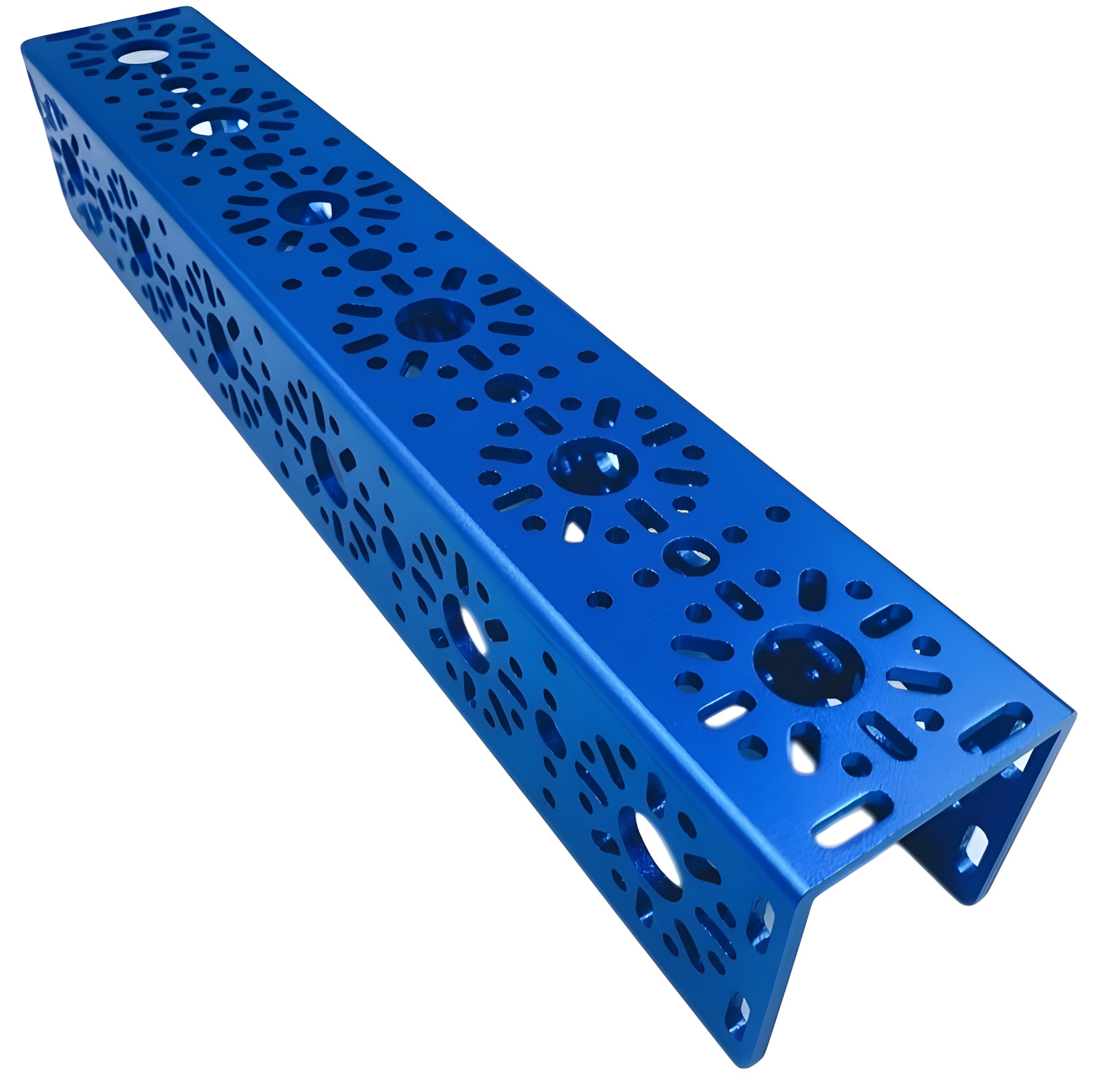

288mm U-Channel (Blue)

GT2-6mm Timing Belt Clamp w/Set Screw

The Studica Robotics Slide Rail is made of 6061 lightweight aluminum, is 24mm wide, and is perfect for linear motion and building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating an extended length of 468mm.

The 6mm ID Round Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axles.

The Maverick 12V DC Gear Motor 61:1 w/Encoder from Studica Robotics is an ideal high torque motor for robotics, designed for strength to endure competitions, with 100rpm and 708 oz-in of torque.

To connect to the REV Robotics Control Hub, the Maverick Encoder Cable (#70163) is required as an Add-on.

Note: This motor is legal for FIRST (FTC) competitions.

The Studica Robotics Motor Mount Plate is used with the Maverick 12V DC Gear Motor to attach to the inside any U-Channels.

The Studica Robotics 6mm D-shaft collar clamp cay be used with the 6mm D-Shape Shaft to secure wheels in their position.

The Studica Robotics 60 Tooth GT2-6mm Timing Belt D-Shaft Pulley can be used with any of the GT2 belts in your robotics builds.

The M3 x 10mm low profile screw with Kep Nut is a 304 Stainless Steel M3 Din 7991 countersunk hex socket flat head screw with a matching Kep Nut. This package is made for the Slide Rail, 288mm Length, 180mm Stroke and the Slide Rail, 384mm Length, 240mm Stroke
