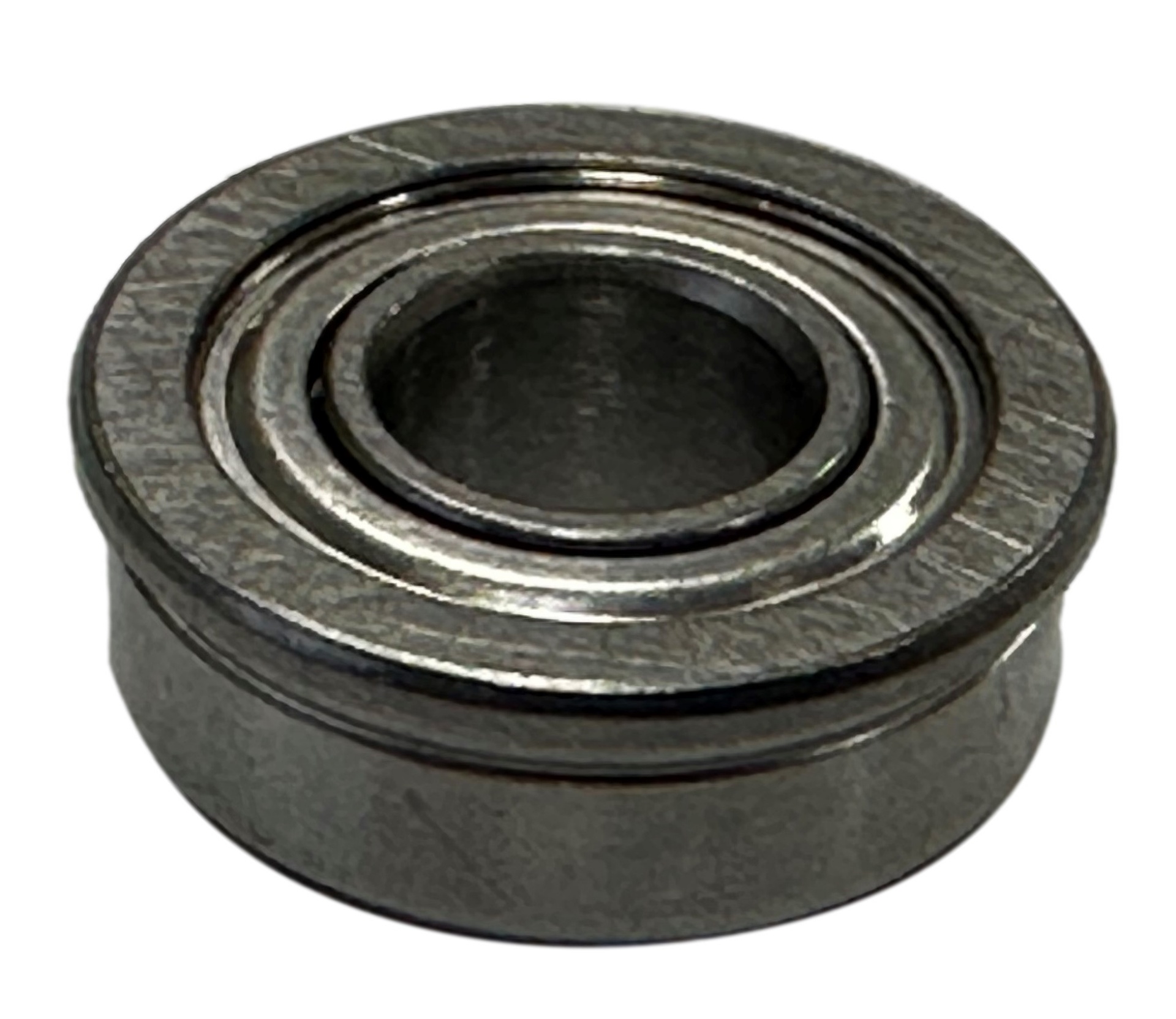

The 6mm ID Round Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axles.
Specifications:
The Studica Robotics 6mm x 432mm D-Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
GT2-6mm Timing Belt Clamp w/Set Screw
The Studica Robotics Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Ideal for linear motion the closed length is 384mm, with a 240mm stroke, creating a 624mm extended length.
The Studica Robotics Slide Rail is made of 6061 lightweight aluminum, is 24mm wide, and is perfect for linear motion and building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating an extended length of 468mm.
The Studica Robotics Motor Mount Plate is used with the Maverick 12V DC Gear Motor to attach to the inside any U-Channels.
The Studica Robotics 30-tooth bevel gear, 1-1 set (2 pack) is ideal for robotics design builds.
The Studica Robotics 60 Tooth GT2-6mm Timing Belt D-Shaft Pulley can be used with any of the GT2 belts in your robotics builds.
The Studica Robotics Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, and most servos with a 25 Tooth gear.
The M3 x 10mm low profile screw with Kep Nut is a 304 Stainless Steel M3 Din 7991 countersunk hex socket flat head screw with a matching Kep Nut. This package is made for the Slide Rail, 288mm Length, 180mm Stroke and the Slide Rail, 384mm Length, 240mm Stroke
The Studica Robotics Orbital Motor Mount is used to fasten an orbital motor to your model's U-channel.
The Studica Robotics 6mm Hex-Shaft Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the 6mm Hex-Shaft axles.
The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The 6mm diameter D-Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The 6mm x 96mm D-Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
