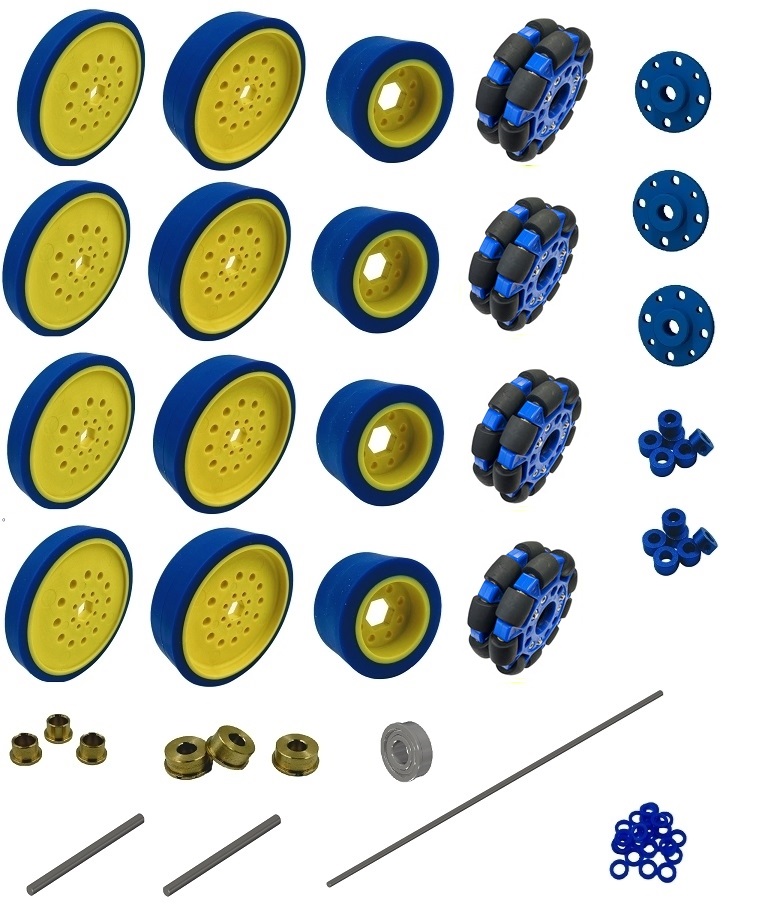

The Studica Robotics Wheel Pack contains an assortment of drive wheels, omni wheels, D-shafts, bushings, shaft hubs, a bearing and a shaft spacer for your robotics competition designs.
Includes:
The Studica Robotics 100mm (4 inch) Omni Wheel provides rotational and sideways 360° maneuverability. Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning. Use the Enhanced Wheel D-Shaft Hub Kit with this Omni Wheel.
The Studica Robotics 100mm Drive Wheel (4"), with a 12.5mm axial width can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems. Use with 1/2" hex shaft or use a 6mm Shaft Hub to connect to 6mm D-Shaft axles.
The Studica Robotics 100mm Drive Wheel (4") with an axial width of 25mm, can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems. Use with 1/2" Hex Shaft or 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
The Studica Robotics 50mm (2") blue Drive Wheel with a durometer of 50A can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
The 6mm x 96mm D-Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The Studica Robotics 6mm x 432mm D-Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The Studica Robotics bronze bushing 12-pack is ideal for robotics design builds.
The Studica Robotics Bronze Bushing 6mm ID x 14mm OD fits any of channel or flat bracket having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axles.
The 6mm ID Round Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axles.
The Studica Robotics D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axles.
The Studica Robotics 6mm D-Shaft Hub (4 pack) is used to connect any Studica wheel and/or motor with a 6mm shaft.
This Studica Robotics 1mm nylon spacer 24-pack is used to space gears, sprockets, wheels, and other parts along a 6mm D-shaft. Mix and match with various spacer lengths.
