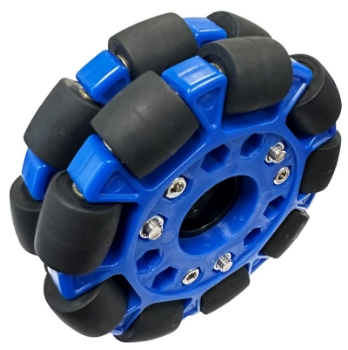

    100mm Omni Wheel

    Be the first to review this product

    The Studica Robotics 100mm (4 inch) Omni Wheel provides rotational and sideways 360° maneuverability and includes integrated 6mm plastic Hub.  Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning. Use the Enhanced Wheel D-Shat Hub Kit with this Omni Wheel.



    MFR Part #: 76272
    $29.99
    In stock

    Specifications:

    • Diameter:   100mm (4")
    • Axial width:  16mm
    • Hub:    6mm (included)
    • Number of plate:  2
    • Number of roller: 18
    • Body material:    Nylon
    • Roller material:   Rubber
    • Roller diameter:  19mm
    • Net weight:          275g
    • Load capacity:    20kg
    • Step File
