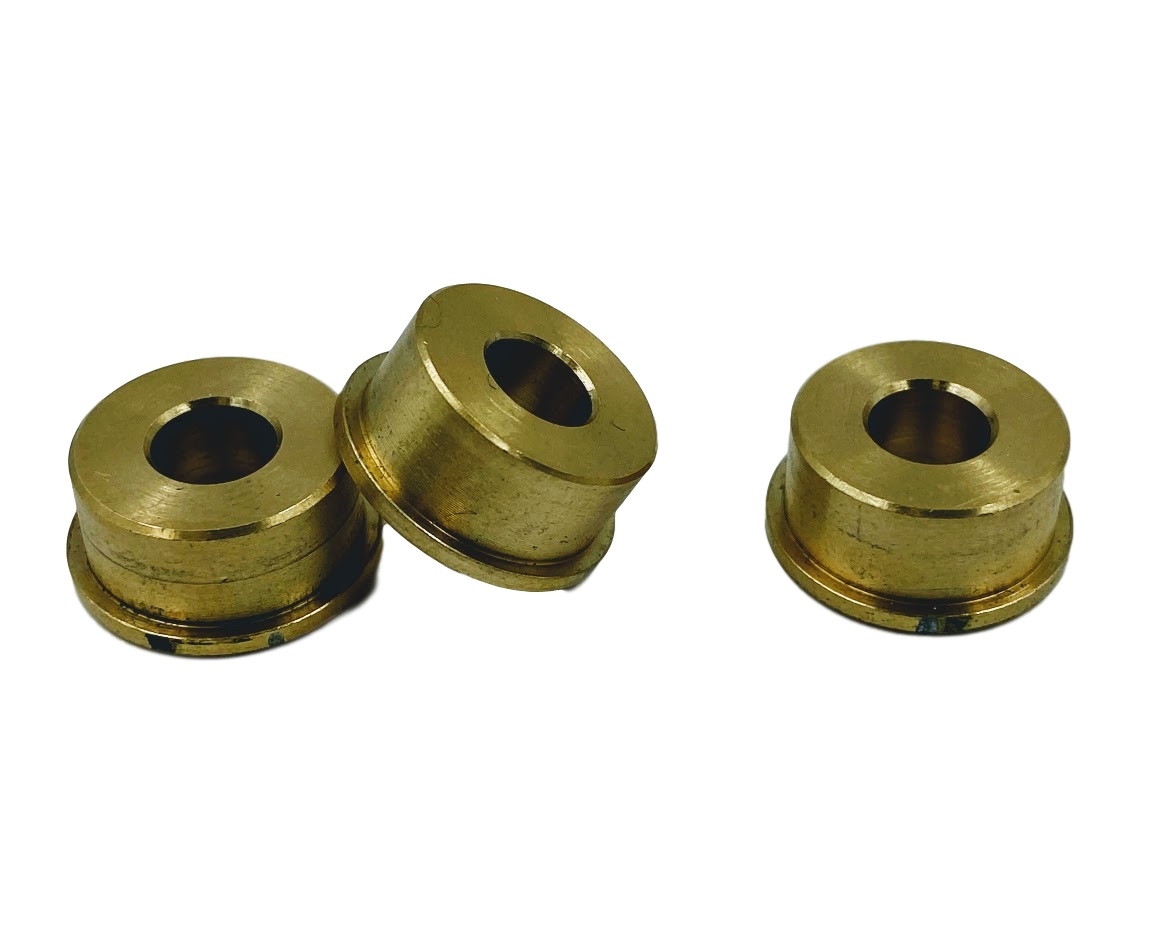

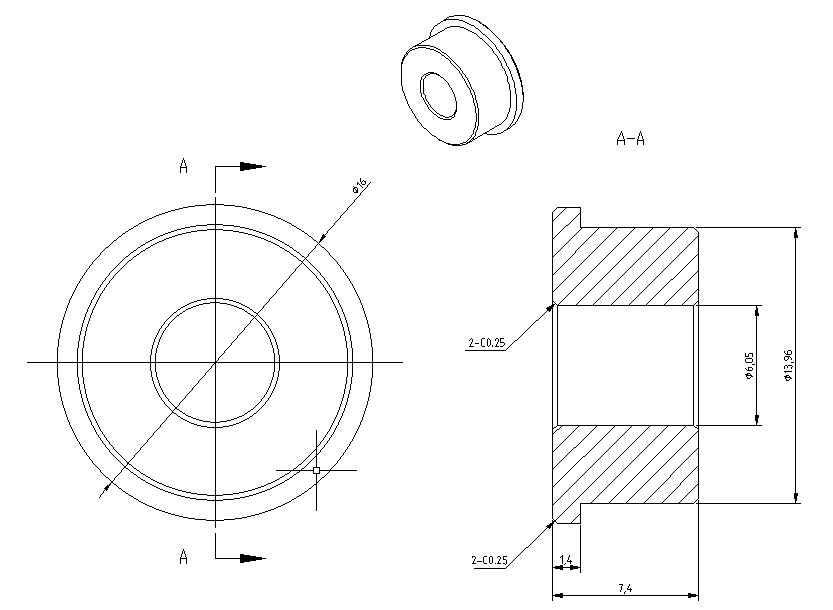

The Studica Robotics Bronze Bushing 6mm ID x 14mm OD fits any of the channel and flat brackets having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axles.
Material: BronzeInside Diameter: 6 mmOutside Diameter: 14mm
