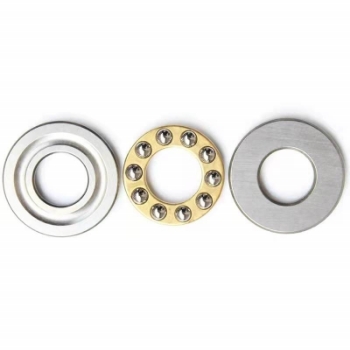

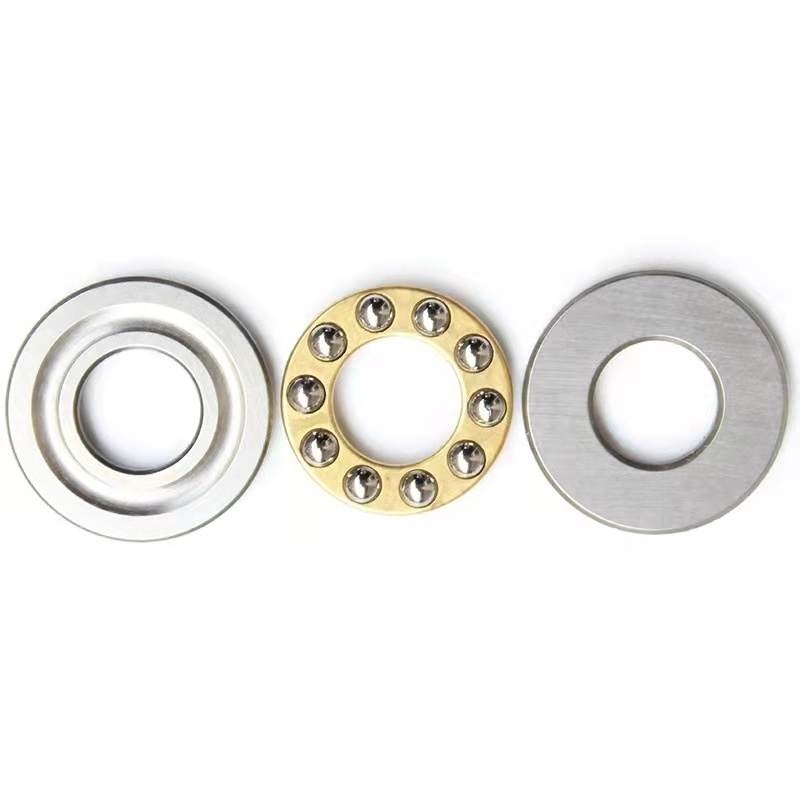

The Studica Robotics Small Thrust Ball Bearing is used for vertical and axial loads to withstand heavy loads. These ball bearings have track grooves on the upper and lower track boards to reduce friction. Use these with structure for any hole where an axial load will be applied.
Specifications:
A Studica Robotics 90 Tooth D-Shaft Gear for use with robotics design builds.
The Studica Robotics 160mm closed-loop 6mm GT2 timing belt (2 pack) has a 2mm pitch and a 6mm width.
The Studica Robotics Threaded Joiner Plate can be used to join two different structure components together, such as U-Channels and brackets.
The Studica Robotics Threaded Pattern Plate (6-pack) can be used to join two different structural components together.
The Studica Robotics Rubber Grommets (10 pack) are made for channels and plates and/or any structure with a 14mm hole. For use to protect wire or as a bumper.
The Studica Robotics U-Channel Bumper (4 pack) is connected to the end of a 48mm U-Channel and helps to eliminate sharp corners that can cause damage when the robot is bumping into other objects. It also creates an aesthetically clean finish to your robot.
The Studica Robotics nylon Rubber Foot (4 pack) is used with our structure for robotics design builds.
The M3 x 10mm low profile screw with Kep Nut is a 304 Stainless Steel M3 Din 7991 countersunk hex socket flat head screw with a matching Kep Nut. This package is made for the Slide Rail, 288mm Length, 180mm Stroke and the Slide Rail, 384mm Length, 240mm Stroke
· 450mm Length
· 3 position
· TJC8 MH-FC on one end
· TJC8 FH-MC on the other end
· Twisted cable
· Colors: White, Red, Black (red in middle)
· 24AWG Guage
The 6mm ID Round Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axles.
The Studica Robotics Bronze Bushing 6mm ID x 14mm OD fits any of channel or flat bracket having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axles.
The Studica Robotics bronze bushing 12-pack is ideal for robotics design builds.
