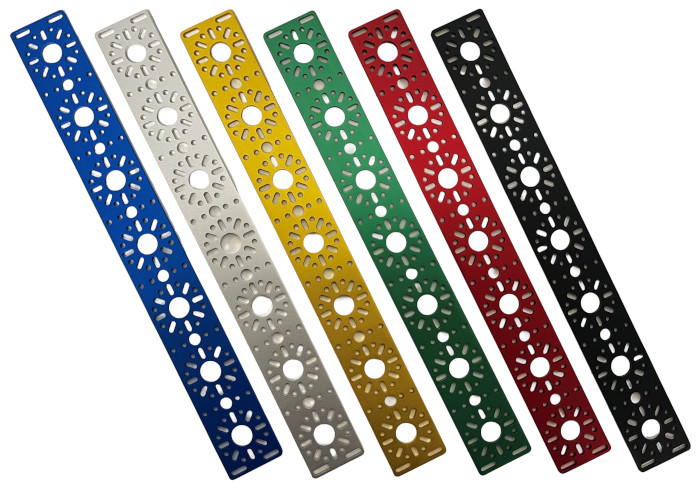

The Studica Robotics 336mm Flat Bracket, available in six different colors, has a dimension of 3mm thickness x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.
Note: Our blue color structure is currently in stock. We expect to ship the rest of our exciting new structure colors in late September. For pre-orders, select your quantity and click the Quote button to reserve your choice. You may also reach out to our robotics account representatives at [email protected] for consultation.
You can easily connect the flat bracket to other channels, extrusions, bushings, bearings, mounting brackets and more to quickly assemble and disassemble robots and automated systems.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness - 3mm
- Width - 40mm
- Length - 336mm
- Hole Pattern - 7

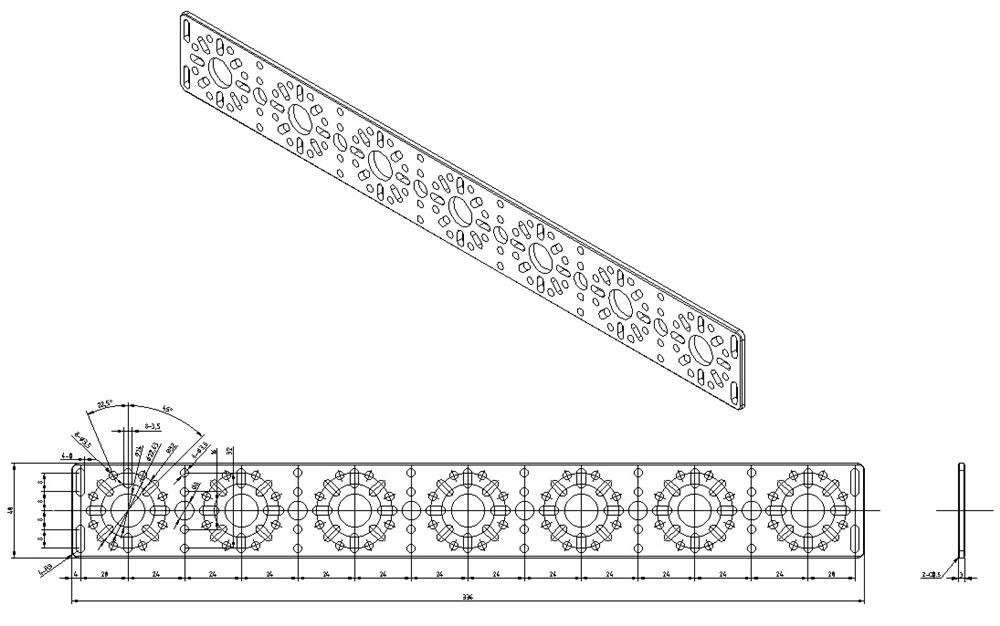

- Step File
