96mm Adjustable Flat Bracket

The Studica Robotics 120 Degree Bracket, available in six different colors, is ideal for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use 3 brackets with 3 channel pieces to make 3 wheeled robots.

Note: Our new colors are now in stock !

The Studica Robotics 135 Degree Bracket, available in six different colors, is ideal for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel.

Note: Our new colors are now in stock !

The Studica Robotics 90 Degree Bracket is ideal for connecting two channel pieces at a 90-degree angle from each other and is part of our colored structure collection.

Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new color structure components (red, green, blue, silver, gold, and black) are now in stock!

The Studica Robotics 144mm Flat Bracket, available in six different colors, has dimensions of 3mm thickness x 40mm width. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Note: Our new colors are now in stock !

The Studica Robotics 192mm Flat Bracket has dimensions of 3mm thickness x 40mm width and part of our colored structure collection. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Note: Our new color structure components (red, green, blue, silver, gold, and black) are now in stock!

The Studica Robotics 192mm x 96mm Flat Bracket, available in six different colors, is very strong, with a thickness of 3mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

The Studica Robotics 240mm Flat Bracket, available in six different colors, is 3mm x 40mm wide, and very strong. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

The Studica Robotics 288mm Flat Bracket, available in six different colors, blue, silver, gold, green, red and black. They have a thickness of 3mm and a width of 40mm. As with the other Studica Robotics building components, it has the common patented hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Note: Our structure components are available in an assortment of vibrant colors and are now in stock !

The Studica Robotics 336mm Flat Bracket, available in six different colors, has a dimension of 3mm thickness x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

The Studica Robotics 384mm Flat Bracket, available in six different colors, has dimensions of 3mm thickness x 40mm width.  As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

The Studica Robotics 432mm flat bracket, available in six different colors, has a height of 14mm and a width of 48mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

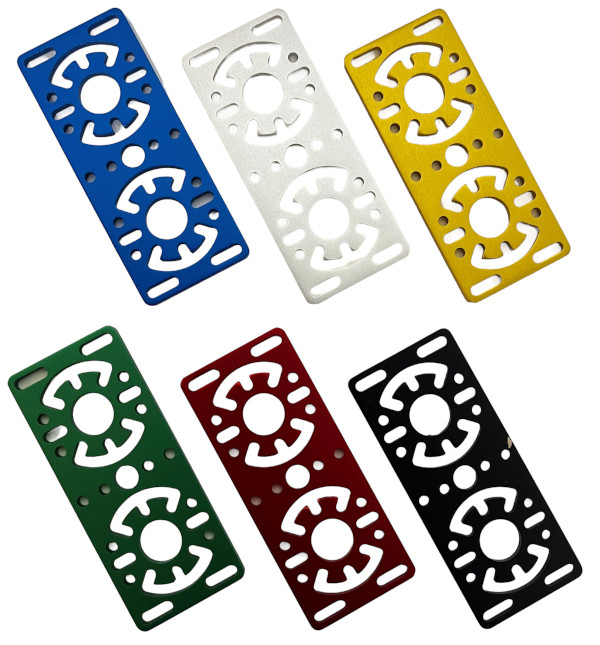

The Studica Robotics 96mm Flat Bracket, available in six different colors, has dimensions of 3mm thickness x 40mm width. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Note: Our new colors are now in stock !

The Studica Robotics Bracket Pack includes various degree brackets, flat brackets, L brackets, U brackets a T and an X bracket, ideal for your robotics designs.

Note: Available in 6 colors!

Made from 3mm thick 6061-T6 Aluminum, available in six different colors, the Studica Robotics Inside L Bracket is 42mm x 45mm and is used inside a U-Channel or Low profile channel.  As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

Note: Our new colors are now in stock !

Made from 3mm thick heavy 6061-T6 Aluminum, the Studica Robotics Inside U Bracket (available in six different colors) is 42mm x 45mm and is used inside a U-Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Note: Our new colors are now in stock !

The Studica Robotics L-bracket is made from 3mm thick, 6061-T6 Aluminum, with a length and width of 48mm x 48mm.  The L-bracket is used outside a  U-Channel or Low profile channel.  As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. Now available in a variety of colors.

Note: Our new colors are now in stock !
