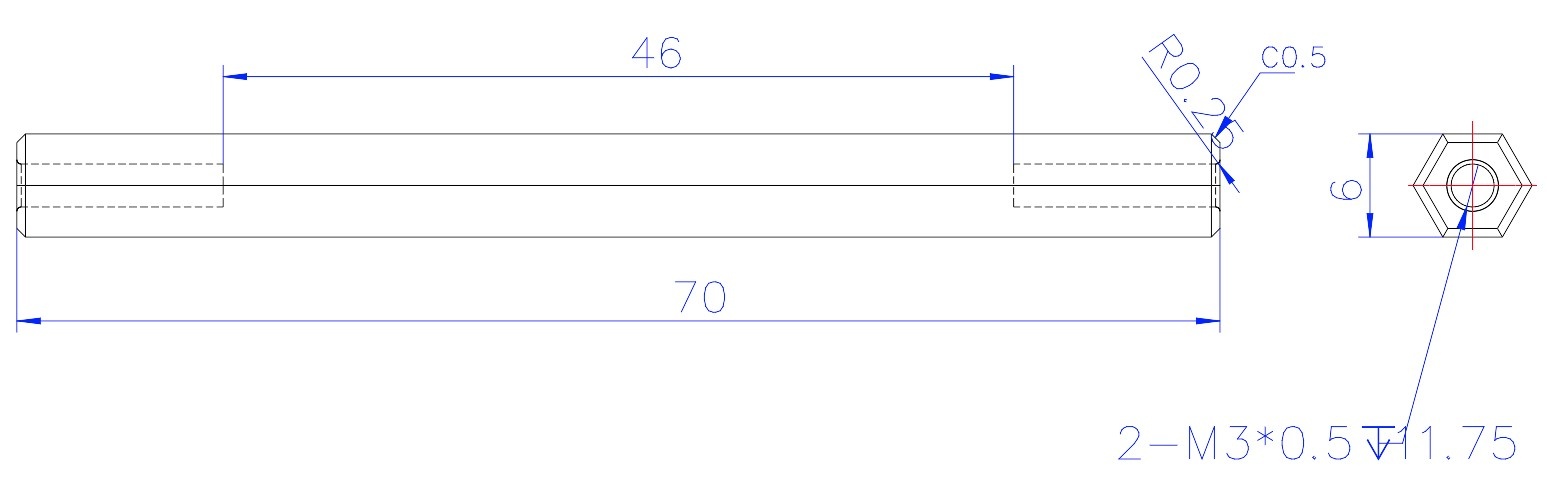

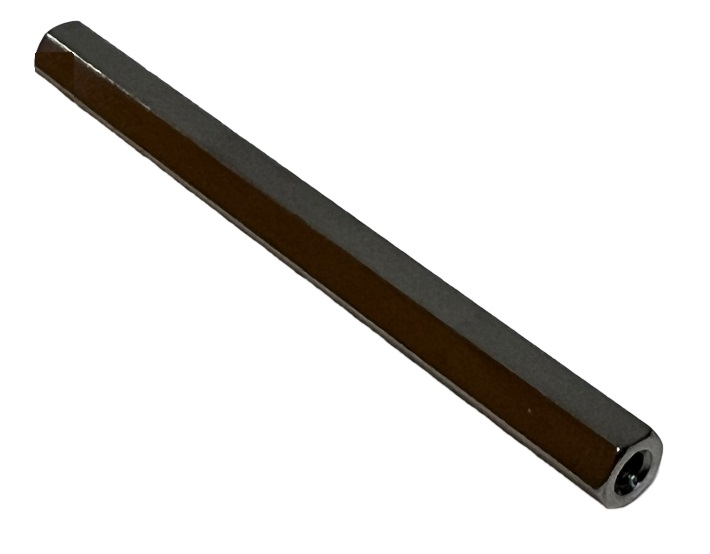

The 6mm diameter Hex-Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
STEP file
OnShape Model link
