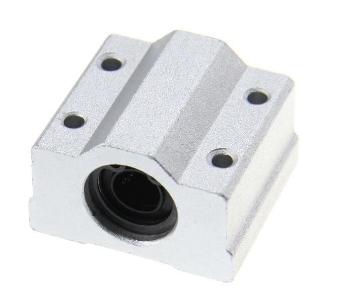

Linear Motion Slide Unit 8mm (2 pack)

This linear motion closed type slide unit has an 8 mm inside diameter. The slide unit, designed to carry a component, has a housing with a flat mounting face and four tapped bolt holes, and circle clips at each end to retain the ball bushing. Ball in the cage loop to run a smooth ball guide surface to ensure even if high-speed operation, low noise.

MFR Part #: 72063

$12.99

In stock

Qty:

Overview
Resources
Reviews

Features:

Closed type bushing block and ball bushing insert for use in linear motion applications
Four-bolt aluminum alloy bushing block for a lightweight ready-to-mount installation
Synthetic resin retainer plate for accurate ball guidance and low noise
Four rows of recirculating balls inside the ball bushing for smooth running
Integral lip seals to retain lubricant and protect against contamination

Resources - Individual Part Files (STP format), Documentation, and Training Videos
