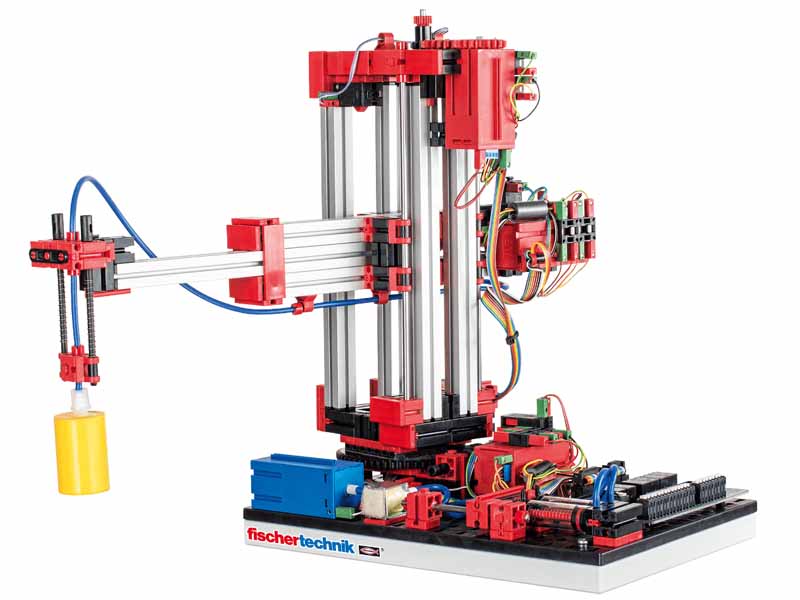

fischertechnik Vacuum Gripper Robot 24V

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

MFR Part #: 536630

$1204.95

In stock

Qty:

Overview
Reviews

The fischertechnik Vacuum Gripper Robot 24V includes:

4 DC motors, including 2 with integrated magnetic encoder (max. pulse frequency 1kHz)
4 Limit switches
2 Pulse sensors for path measurement
8 Digital inputs
8 Outputs, 24V: 4 motors clockwise/counterclockwise rotation
Relay board for motor polarity reversal
Port: PCB with relays to reverse polarity of motor, multi-pin connector (34 pin ST1 connection) and additional PCB terminals with push in connection for all I/O.

NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space.

Working range: X-axis 270 degrees, Y-Axis (forwards/back) 140 mm., Z-axis (up/down) 120mm.

Model includes 3 encoder motors, 3 push button limit switches, a vacuum suction device, a compressor, and a solenoid valve.

Model Dimensions: 8.74 x 18.98 x 15.03 inches.

Weight: 6.88 lbs.
