Software is Windows only.
The perfect data acquisition hardware and software software kit for learning electronics engineering!
Two Differential Analog Input and Analog Output Channels (200 ks/s, 16 bit, +/- 10 Volts)
Access matched analog input and output channels in a +/- 10 volt range through the screw terminal connectors or +/- 2 volt range through the 3.5mm audio jacks.
+5 , +15, and -15 Volt Power Supply Outputs (up to 500m Watts of Power)
USB powered for maximum mobility, myDAQ supplies enough power for simple circuits and sensors.
Eight Digital Input and Digital Output Lines (3.3 Volt TTL-Compatible)
Use software-timed digital lines for interfacing both Low Voltage TTL (LVTTL) and 5 volt TTL digital circuits. Each line is individually selectable for input or output.
60 Volt Digital Multimeter (DMM) for Measuring Voltage, Current, and Resistance
The isolated DMM includes the capability to measure both AC and DC voltage and current as well as resistance, diode voltage, and continuity.
Reusable Storage Box with Storage Tray, DMM Probes, and Audio Cable
The box and storage tray provide convenient storage for your NI myDAQ and included USB cable, DMM probes, audio cable, as well as your own components and accessories.
View the NI myDAQ User guide and Specifications [Click Here]
- NI myDAQ device
- Powered by LabVIEW
- Integrated Installation DVD
- NI EL-VISmx & NI DAQmx
- USB Cable
- DMM Probes
- Audio cable (3.5mm)
- Screw Terminal connector and NI screwdriver
- Getting Started Card
- TI Design Competition & Samples Program Card
- Reusable Storage Tray

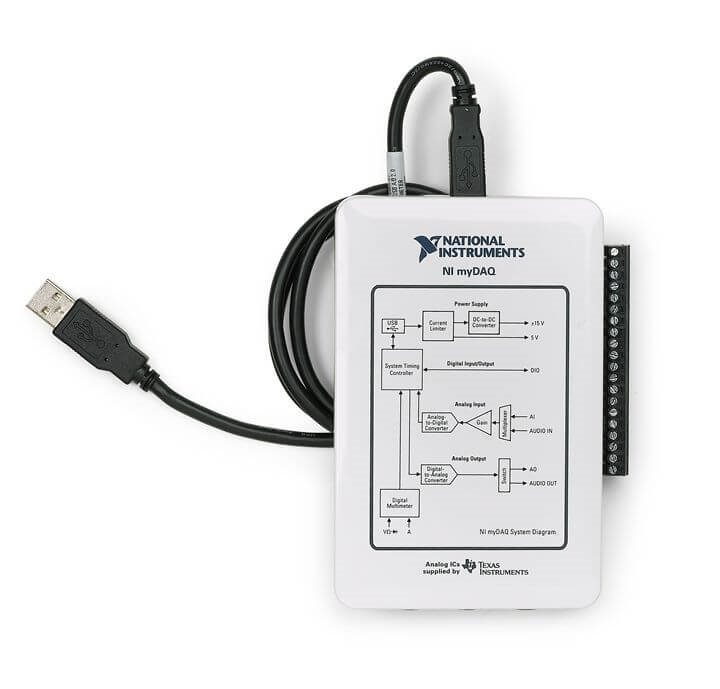

This is a single device offers eight commonly used plug-and-play computer-based lab instruments. With NI myDAQ, the computer becomes an engineering instrument.
Designed by National Instruments with high-quality Texas Instruments Analog Integrated Circuits (ICs), the hardware system diagram and list of Texas Instruments IC's in the user guide depicts how TI data converters, amplifiers, and interface and power management circuits were used in the design of the device.
LabVIEW and Multisim Software included
Extend the device's capabilities with NI LabVIEW and NI Multisim.
Used to develop automated research, production test systems, and validation, NI LabVIEW software from National Instruments is a graphical programming environment.
NI Multisim is an industry standard circuit design and SPICE simulation software for power, digital, and analog electronics design projects.
Verify homework solutions with real signals using NI Multisim for circuit simulation and the NI LabVIEW graphic programming software for automating measurements and performing various signal processing.
Get tips on using the three different software platforms, troubleshoot problems with your NI myDAQ, and/or ask your own questions on the discussion forum - link is listed below.
