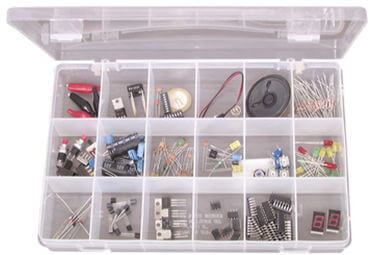

    Basic Parts Kit

    This Basic Parts Kit provides you with 100's of parts to aid you in your prototype needs. Perform experiments first hand and develop a greater understanding of key concepts.
    MFR Part #: CK-1000
    $92.34
    Availability: 16 in stock

    The Basic Parts Kit includes:

    Resistors (1/4W, 5%, 5 each)

    • 10Ω, 100Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 8.2kΩ, 10kΩ, 18kΩ, 27kΩ, 47kΩ, 82kΩ, 100kΩ, 220kΩ, 330kΩ, 470kΩ, 1MΩ

    Resistors (Trim Pot):

    • 500Ω, 1kΩ, 5kΩ, 50kΩ, 100kΩ, 500kΩ, 1MΩ

    Capacitators (10%, 50V Disc, 2 each):

    • 2.2pF, 5pF, 10pF, 15pF, 22pF, 47pF, 100pF, 220pF, 470pF, 680pF

    Capacitators (10% 100V Mylar, 2 each):

    • 0.001µF, 0.0047µF, 0.01µF, 0.047µF, 0.1µF, 0.33µF

    Capacitators (50V Lytic Radial, 2 each):

    • 1µF, 4.7µF, 10µF, 100µF, 470µF, 1000µF (35V)

    Semiconductors:

    • Bridge rectifier 1.5A
    • Diodes:
      • 1N34A, 1N4148, 1N4001, 1N4728, 1N4739, 1N4743, 1N4747
    • SCR: C106B1
    • Transistors:
      • 2N2222A, 2N2907, 2N3055, 2N3904, 2N3906, 2N5457
    • ICs:
      • LM386N-1, NE555, LM1741CP1, CD4013BE, 4017, LM7805CT, LM7812CV, 74LS00, 74LS02, 74LS08, 74LS10, 74LS74, 74LS86
    • Photo cell

    LEDs (4 each):

    • Red, Green, White, Yellow, 7-segment display

    Inductors:

    • Choke:
      • 10mH, 470µH, 1000µH/1mH, 4.7µH, 10µH, 47µH, 100µH, 33mH
    • 5V Relay

    Wire (22ga. solid, 5'):

    • Black, Red, Orange, Yellow, Green

    Miscellaneous:

    • Push button switch
    • SPDT slide switch
    • DPDT slide switch
    • 8-pole DIP switch
    • condencer microphone
    • 9V battery snap
    • 8Ω speaker
    • buzzer
    • black & red alligator clips
