    6mm Hex-shaft Rack and Pinion Set

    Be the first to review this product

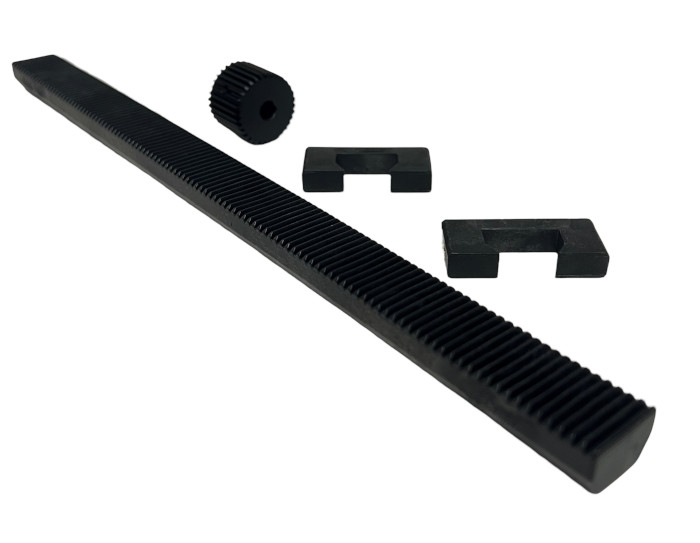

    The Studica Robotics 6mm Hex-Shaft Rack and Pinion Set includes 1 Rack, 1 Pinion, and 2 Glides. The rack hole pattern matches that of the channel, flat beams, square beams and flat brackets so it's easy to mount on the Studica Robotics structure.

    MFR Part #: 76170H
    $16.99
    $12.74
    In stock

    The rack and the glides are made of POM Plastic providing high stiffness, low friction, and excellent dimensional stability. The pinion has a 6mm Hex-shaft hub, 25.52mm addendum circle diameter and is made of 6061-T6 Aluminum.

    The Studica Rack and Pinion Hex-Shaft Set is quite versatile and can be used in various applications, particularly in robotics and automation projects. Here are some common uses:

    1. Linear Motion: It is ideal for creating linear motion systems, allowing precise control over the movement of components.
    2. Positioning Systems: The set can be used to build positioning systems where accurate placement of parts is crucial.
    3. Robotics Competitions: It’s often used in robotics competitions like Worldskills, the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO) for building mechanisms that require linear actuation.
    4. Automation Projects: Useful in various automation projects where components need to move along a straight path.
    5. Educational Purposes: Great for educational kits and projects to teach students about mechanical motion and control systems.
