    Rack and Pinion D-Shaft Set (2 Pack)

    Be the first to review this product

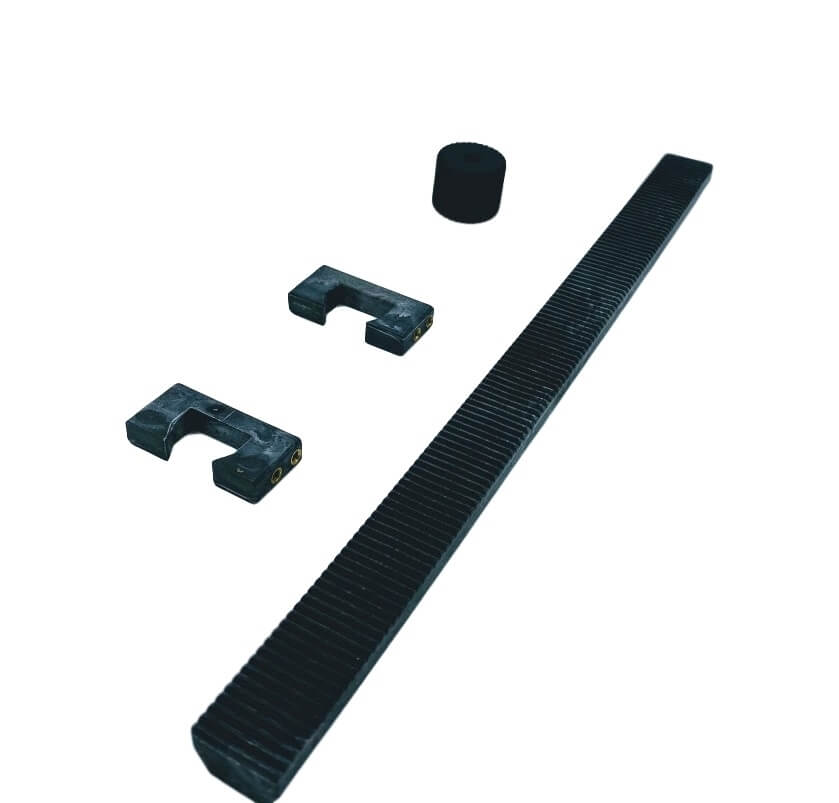

    The Studica Robotics Rack and Pinion D-Shaft Set (2 Pack) includes 2 Racks, 2 Pinions, and 4 Glides. The rack hole mounting pattern matches that of the Studica Robotics channels, flat beams, square beams and flat brackets so it's very easy to mount onto the Studica Robotics structures.

    MFR Part #: 76170-2
    $22.99
    In stock

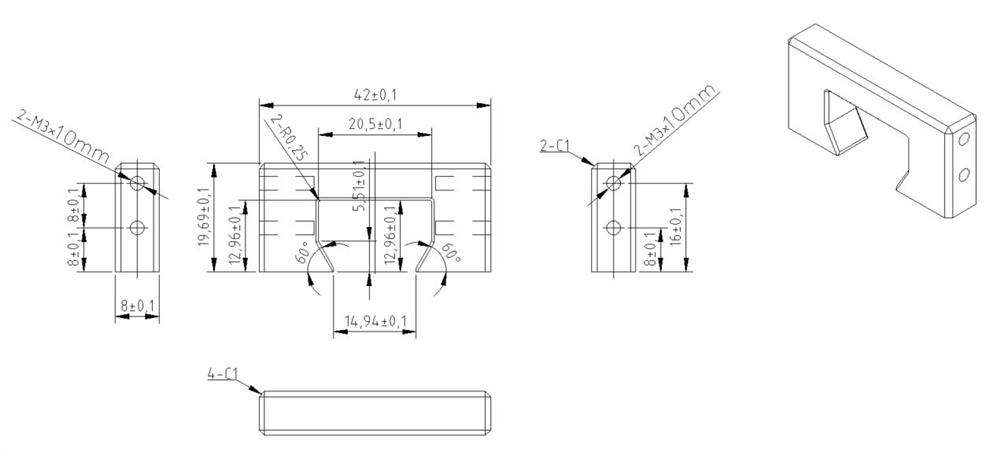

    The rack and the glides are made of POM Plastic providing high stiffness, low friction, and excellent dimensional stability. The pinion has a 6mm D-shaft hub, 25.52mm addendum circle diameter and is made of 6061-T6 Aluminum.

    The Studica Rack and Pinion D-Shaft Set is quite versatile and can be used in various applications, particularly in robotics and automation projects. Here are some common uses:

    1. Linear Motion: It is ideal for creating linear motion systems, allowing precise control over the movement of components.
    2. Positioning Systems: The set can be used to build positioning systems where accurate placement of parts is crucial.
    3. Robotics Competitions: It’s often used in robotics competitions like Worldskills, the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO) for building mechanisms that require linear actuation.
    4. Automation Projects: Useful in various automation projects where components need to move along a straight path.
    5. Educational Purposes: Great for educational kits and projects to teach students about mechanical motion and control systems.
