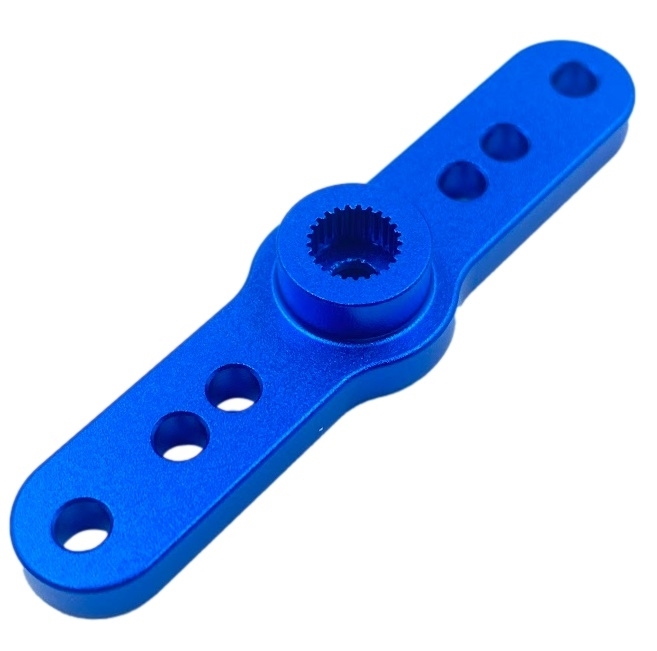

Servo Arm Extended

The Studica Robotics 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axle.

The Studica Robotics Multi-Mode Smart Servo Motor features all-steel gears and large amounts of torque.

Note: This servo is legal for FIRST (FTC) competitions.

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

The Studica Robotics Servo Mount Flat Plate is designed to mount the Multi-Mode Smart Servo (part #75002) to the Studica building structure.

The Studica Robotics Servo Mount Offset Plate is used to mount the Multi-Mode Smart Servo (part #75002) to the Studica building structure.

Includes,

• 8 - Multi-Mode Smart Servo Motors 75002
• 1 - Smart Robot Servo Programmer  75003
• 1 - 6V DC AA Battery Holder w/TJC8 Female, 22 AWG  75004
• 1 - Servo Power Block  75006
• 4 - Servo Standard Front Mount  76144
• 4 - Servo Mount Flat Plate  76145
• 4 - Servo Mount Offset Plate  76146
• 8 - Servo Horn 25T  76148
• 8 - 6mm D-Shaft Servo Hub 25T  76149

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

The Multi-Mode Smart Servo 200 rotates at 200RPM. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
