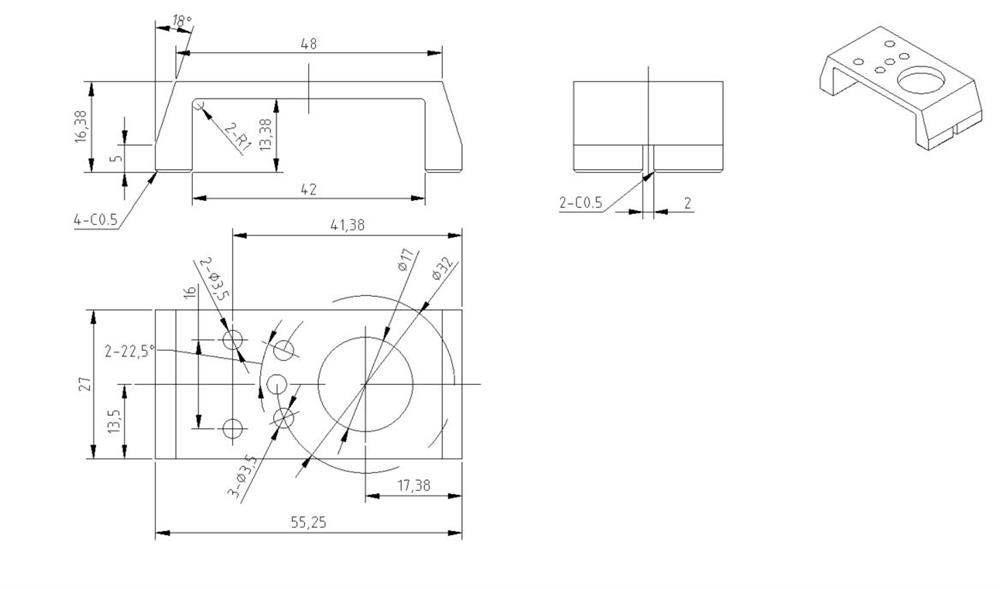

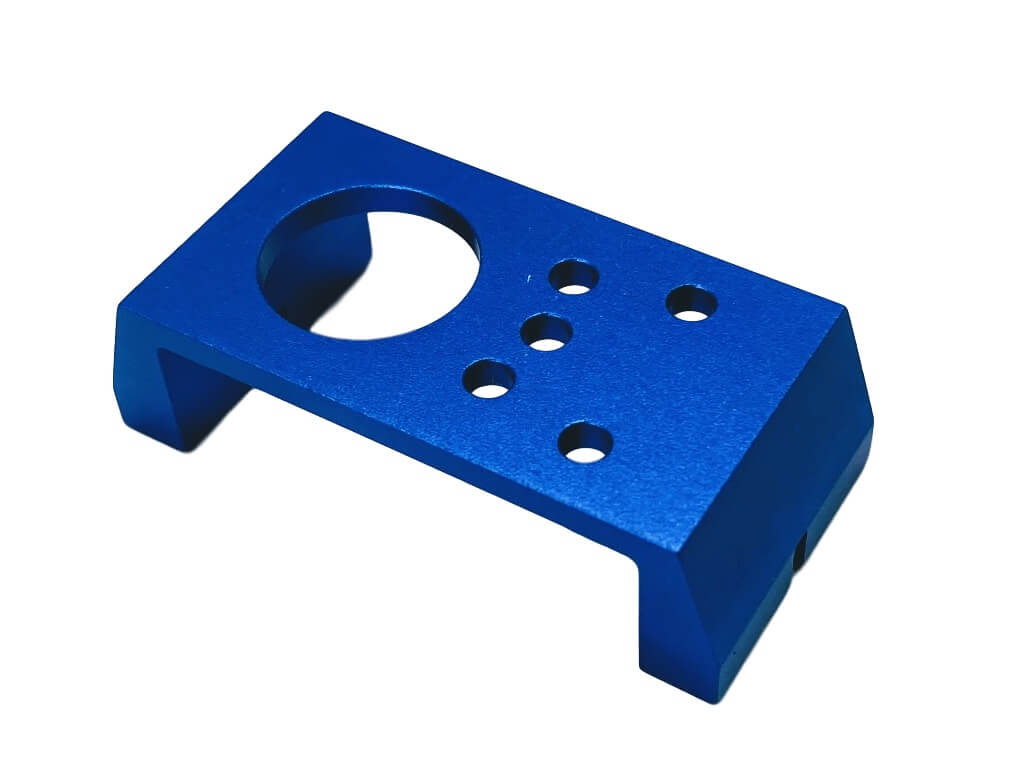

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The Studica Robotics Slide Rail is made of light weight aluminum, is 24mm wide, and is perfect for building a multi-stage slide system. Ideal for linear motion the closed length is 384mm, with a 240mm stroke, creating a 624mm extended length.
The Studica Robotics 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axle.
Made of aluminum, the Studica Robotics Clamping 6mm D-Shaft Hub is used with flex and drive wheels.
The Studica Robotics Light Weight 6mm D-Shaft Hub (2 pack) are used with 6mm D shafts. They have a 5mm set screw for tight clamping and seven M3 tapped mounting holes.
The Studica Robotics Slide Rail is made of 6061 lightweight aluminum, is 24mm wide, and is perfect for linear motion and building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating an extended length of 468mm.
The Studica Robotics Motor Mount Clamp kit is used for fastening motors on the body of your robot and attaching the kit to a channel and/or other structures.
The Studica Robotics Servo Mount Flat Plate is designed to mount the Multi-Mode Smart Servo (part #75002) to the Studica building structure.
This Studica Robotics 1mm nylon spacer 24-pack is used to space gears, sprockets, wheels, and other parts along a 6mm D-shaft. Mix and match with various spacer lengths.
This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm D-shaft. Mix and match various spacer lengths.
A Studica Robotics aluminum alloy shock absorber for use with your robotics design builds.
Includes,
The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.
The Studica Robotics Servo Mount Offset Plate is used to mount the Multi-Mode Smart Servo (part #75002) to the Studica building structure.
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
The Studica Robotics Multi-Mode Smart Servo Motor features all-steel gears and large amounts of torque.
Note: This servo is legal for FIRST (FTC) competitions.
Use it to power the Studica Smart Robot Servo Programmer or any other device requiring 6V output and a TJC8 connector.
Specifications:
