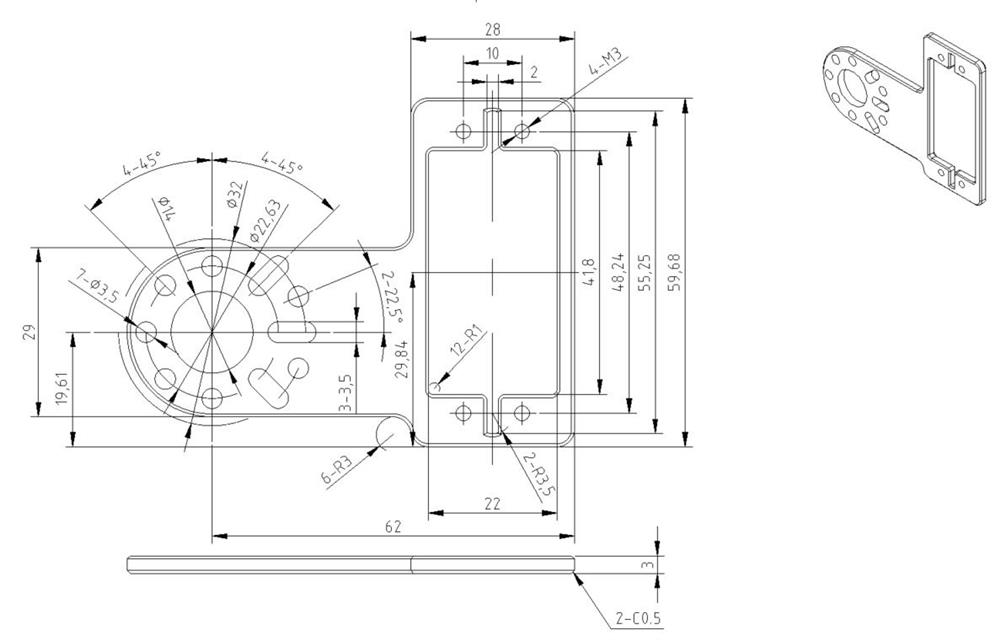

Servo Mount Offset Plate

The Mobile (Autonomous) Robotics VMX/Titan Workshop Kit is used in the classroom for teaching, testing, and doing research in mobile robotics. It includes each of the essential components and is referenced in the WorldSkills Mobile Robotics Shanghai 2022 training material. This is a comprehensive educational resource that harnesses CAN Bus technology for hands-on learning. Note: The color of the Omni wheels included is subject to change based on availability.

• Parts List (View as PDF)

Includes,

• 8 - Multi-Mode Smart Servo  75002
• 1 - Smart Robot Servo Programmer  75003
• 1 - 6V DC AA Battery Holder w/TJC8 Female, 22 AWG  75004
• 1 - Servo Power Block  75006
• 4 - Servo Standard Front Mount  76144
• 4 - Servo Mount Flat Plate  76145

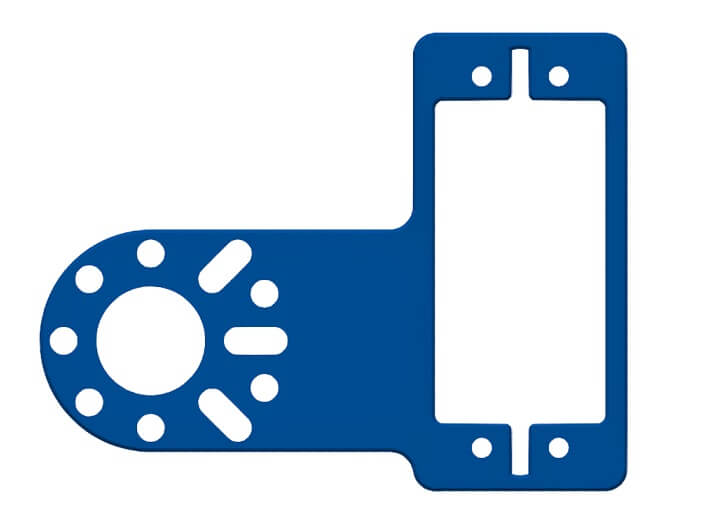

• 4 - Servo Mount Offset Plate  76146
• 8 - Servo Horn 25T  76148
• 8 - 6mm D-Shaft Servo Hub 25T  76149

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

The Studica Robotics Servo Mount Flat Plate is designed to mount the Multi-Mode Smart Servo (part #75002) to the Studica building structure.

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

The Studica Robotics Multi-Mode Smart Servo features all-steel gears and large amounts of torque.

Note: This servo is legal for FIRST (FTC) competitions.

The Studica Robotics 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axle.

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM

Use it to power the Studica Smart Robot Servo Programmer or any other device requiring 6V output and a TJC8 connector.

Specifications:

• 6V Output
• On/Off Power switch
• TJC8 connector
• Uses 4 x 1.5V AA Batteries (not included)
