Breadboard Adapter

The Breadboard Adapter for Analog Discovery provides a 400 tie point breadboard or prototyping surface, that can be directly connected to the Analog Discovery.

MFR Part #: 410-361

$19.99

In stock

Qty:

Overview
Reviews

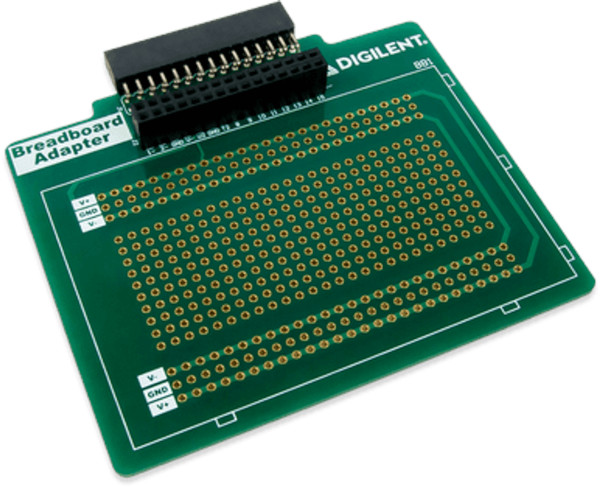

Straight out of the packaging, the adapter provides a female header to pass through all connections from the Analog Discovery a 300 tie point prototyping surface and two power rails directly routed from the V+ and V- pins on the Analog Discovery. Components and wires can be soldered directly to the prototyping surface and power rails for a semi-permanant and secure set up or the included half-sized breadboard can be affixed to the adapter.

Features

Protoboard area consisting of twenty-six rows of 10 plated through-holes
Two 26 hole V+, V-, and GND rails routed from the 30-pin connector
30-pin female header containing all signals from the Analog Discovery
One half-sized solderless breadboard is included
Ideal for small to medium sized circuits
Provides an alternative to the flywires for Analog Discovery
