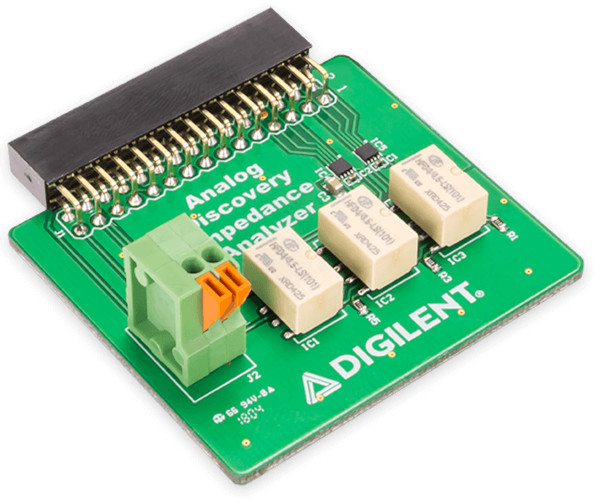

    Impedance Analyzer

    One of the 12 instruments of the Analog Discovery is the Impedance Analyzer instrument, which allows the user to analyze inductive and capacitive elements of a circuit under test.

    MFR Part #: 410-378
    $24.99
    In stock

    When plugged into the Analog Discovery, and connected to WaveForms the Analog Discovery will automatically select the most appropriate configuration for the attached unknown impedance. The adapter is loaded with a 2x15 female connector which can be plugged in directly to the Analog Discovery. Components or leads can be attached via the spring terminal block on the Impedance Analyzer.

    Features

    • 2-wire Impedance Analyzer integrates with the Impedance Analyzer instrument in WaveForms
    • 50pF - 500µF Capacitance Measurement Range
    • 10µH - 1000mH Inductance Measurement Range
    • 1Hz - 15MHz Excitation Frequency Range
    • 2x15 female header for connection to the Analog Discovery
    • Two pin Spring Terminal Block for connection to the circuit under test
    • Product Compliance:
      • HTC: 8473301180
      • ECCN: EAR99
