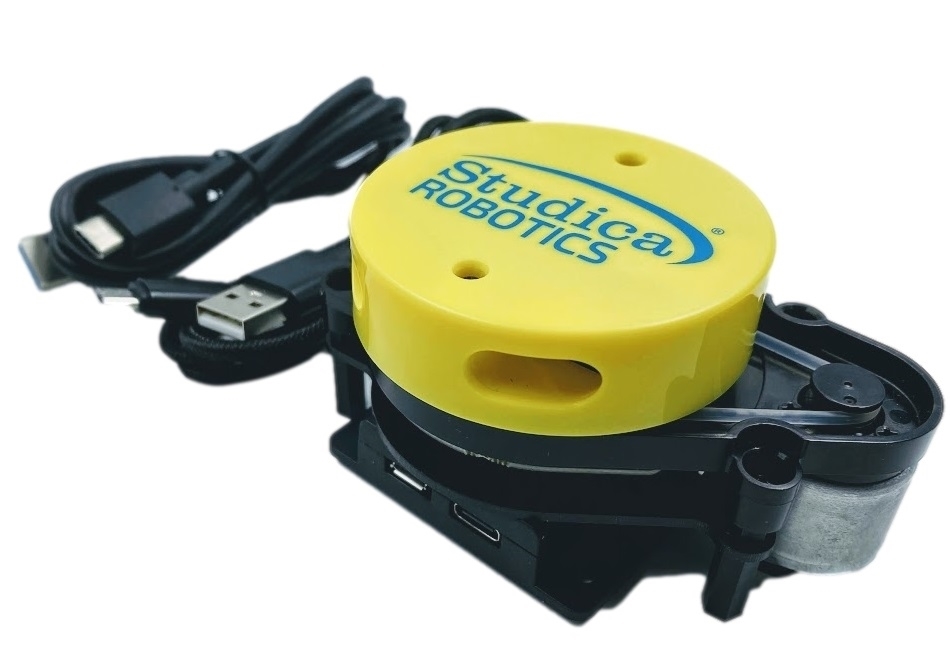

    360 Degree LiDAR

    The Studica 360 Degree LiDAR is a 2D LiDAR that rotates 360 degrees to achieve high accuracy, stable performance, high-frequency and high-precision distance measurement. It's ideal for robot navigation and obstacle avoidance.




    MFR Part #: 70500
    $99.00
    Availability: 6 in stock

    Performance

    • Range 0.2 … 50 m (white wall in daylight conditions)
    • Linear Resolution 1 cm, standard deviation 1.5cm at short range
    • Angular Resolution < 0.2 deg • Update rate Up to 20,000 readings per second and 5 sweeps per second
    • Accuracy ±10 cm long range

    Connections

    • Power supply voltage 4.5 V … 5.5 V
    • Power supply current 300 mA (typical)

    Communication Interface

    • Serial and I2C (3.3V), micro USB
    • CAN: supports up to 7x cascades, 100000~3000000bps (100000bps by default)

    Mechanical

    • Dimensions 53 mm x 44 mm x 37 mm
    • Weight 48g (excluding cables)

    Optical

    • Laser safety Class 1M (refer to www.lightware.co.za/safety for full details)
    • Optical aperture 28 mm x 15 mm
    • Beam divergence < 0.5°

    Environmental

    • Operating temperature -10 ... +50°C
    • Approvals FDA: 1710193-000 (2019/08)
    • Enclosure rating N/A

    Accessories

    • Main cable 7 way - individual wires, unterminated
    • USB cable
    • USB Type A to Micro-B cable
    • CAN Cable

    Default settings

    • Serial port settings 115200 baud, 8 data bits, 1 stop bit, no parity, no handshaking
    • I2C address 0x66 (Hex), 102 (Dec)
    • Update rate 388 readings per second

    Downloads

    Lidar Step File
    Lidar Control Unit Step File
