fischertechnik Factory Simulation 24V

3-axis robot with gripping forceps. Robot quickly and precisely positions workpieces in three -dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

The Training Factory Industry 4.0 – 24V from fischertechnik is an extremely flexible, modular, reasonably priced, and highly robust training and simulation model for use with most popular industrial PLCs. Explore Industry 4.0 and more with this powerful 24V simulation model that includes a variety of factory modules. Details below.

System for detecting workpieces of different colors and sorting them via a conveyor belt into three different storage bins. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

Conveyor belt with two light barriers, one machining station, and one workpiece. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

Furnace with pneumatic sliding door. Downstream processing station with pneumatic transfer unit including vacuum gripper, cutter with rotary table, and conveyor belt. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections. Fully assembled training model for use with PLC (Programmable Logic Controllers) and PLC programming software.

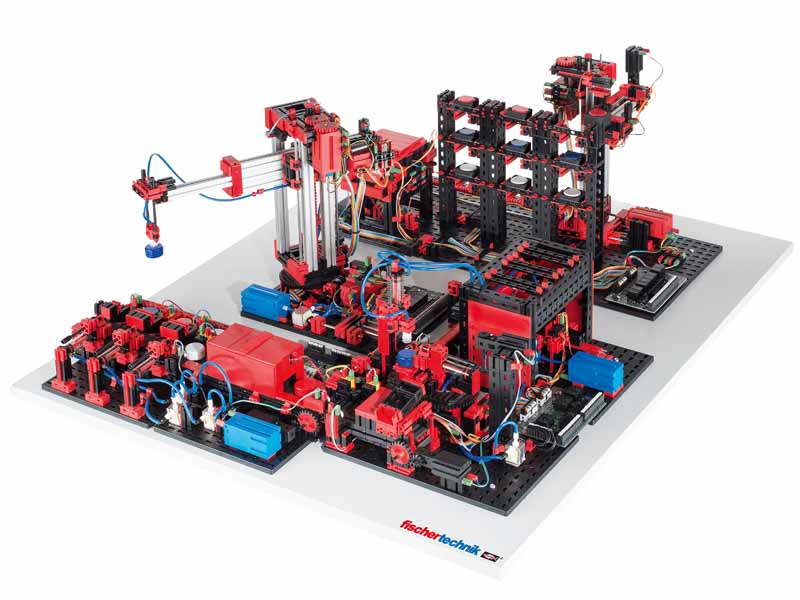

The fischertechnik Factory Simulation model combines four models --Vacuum Gripper Robot, Automated High Bay Warehouse, Multi-Processing Station with Oven, and the Sorting Line with Color Detection--into one self-contained material cycle.

Workpieces are retrieved from the Automated High Bay Warehouse using the Vacuum Gripper Robot, and then moved to the Multi-Processing Station with Oven. After the work-piece has been processed by this machine, it is then sorted by color in the Sorting Line with Color Detection, before being again moved by the Vacuum Gripper Robot to the Automated High Bay Warehouse for storage. This fully assembled factory simulation training model is ideal for use with PLCs (Programable Logic Controllers) and PLC programming software.

Model consists of a transport belt with a length of 275 mm. used to transport workpieces with a diameter of up to 29mm. Multiple conveyors can easily be connected to increase the length of transport as desired. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

Transfer station with conveyor belt, with shelf stacker for storing and retrieving special workpiece carriers, and 9 storage spots. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.
