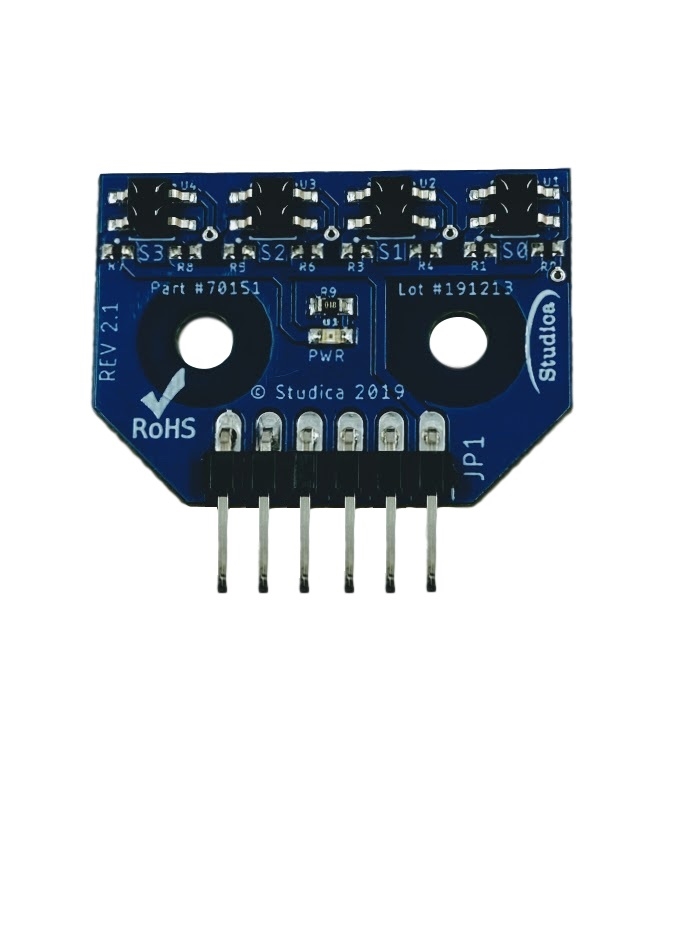

    Cobra Line Follower Sensor

    The Studica Robotics Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch.  Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.



    MFR Part #: 70151
    $9.99
    Availability: 9 in stock

    The Studica Robotics Cobra Line Follower Sensor consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

    Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

    The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

    • 5VDC operating voltage (recommended)
    • 70mA supply current
    • Optimal sensing distance: 0.125" (3mm)
    • Step File
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The Studica Robotics Cobra Line Follower Sensor consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

    Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

    The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

    • 5VDC operating voltage (recommended)
    • 70mA supply current
    • Optimal sensing distance: 0.125" (3mm)
    • Step File
