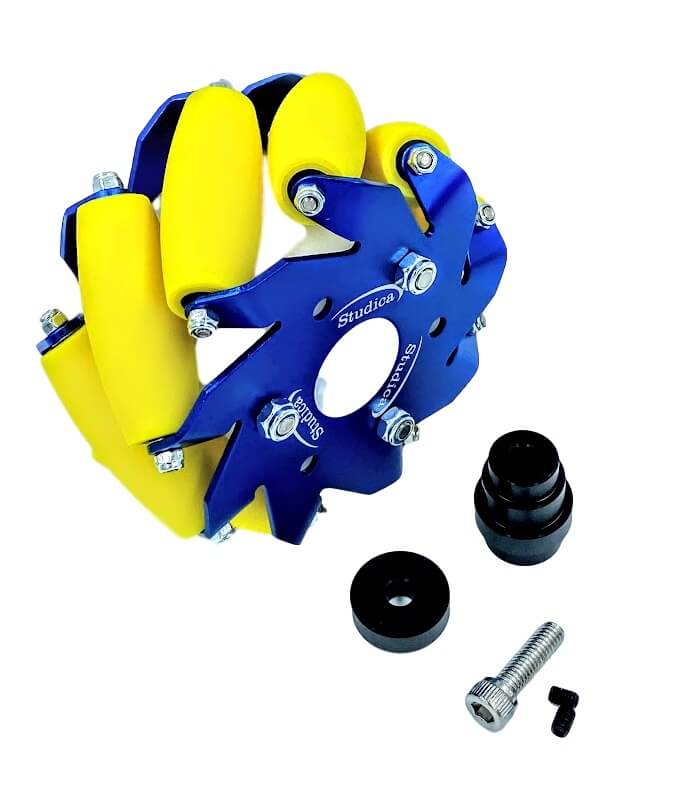

    Mecanum Wheel R (Right Slant - 100mm - w/6mm Hub)

    The Studica Robotics100mm right-slant Mecanum Wheel is constructed with a blue aluminum frame with yellow rollers and a 6mm Hub.  The wheel is comprised of 9 rollers, able to move in any direction. The rollers are set at 45° to the axis of rotation of the wheel.





    MFR Part #: 76242
    $29.99
    Availability: 10 in stock

    Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                     50m
    • Number of Rollers:                                 9
    • Number of Plates each wheel:               2
    • Body material:                                        Aluminium alloy
    • Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Nylon
    • Length of roller:                                     19mm
    • Weight:                                                  354gm
    • Step File

    Hub Specifications:

    • Inside Diameter:                                    6mm
    • Outside Diameter :                                22mm
    • Bore Length:                                          15mm
    • Weight:                                                  32gm
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Wheel Specifications:

    • Diameter:                                                100mm
    • Width:                                                     50m
    • Number of Rollers:                                 9
    • Number of Plates each wheel:               2
    • Body material:                                        Aluminium alloy
    • Roller material:                                       Polyethylene (PE) and Polypropylene (PP)
    • Spacer Material:                                     Nylon
    • Length of roller:                                     19mm
    • Weight:                                                  354gm
    • Step File

    Hub Specifications:

    • Inside Diameter:                                    6mm
    • Outside Diameter :                                22mm
    • Bore Length:                                          15mm
    • Weight:                                                  32gm
