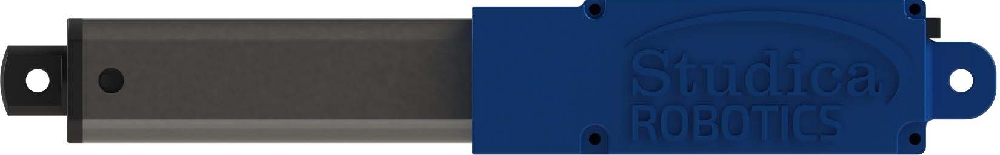

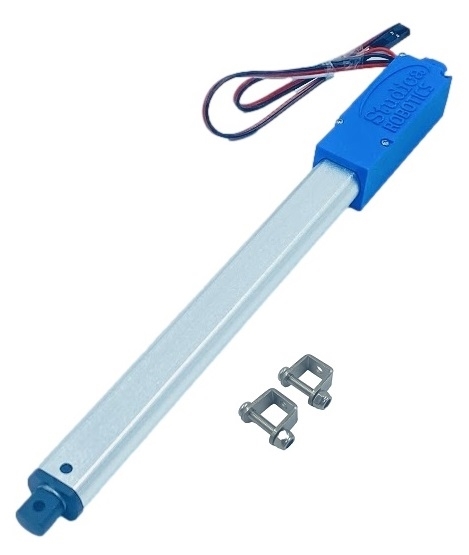

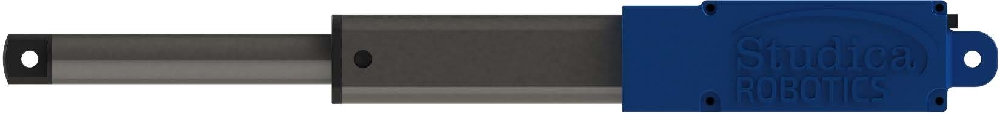

    Linear Servo RC Actuator 140S-190N

    The Studica Robotics Linear Servo RC Actuator 140S-190N is a new linear servo motor which has a stroke of 140mm and a max force of 190N.



    Note: This actuator is legal for FIRST (FTC) competitions.

    MFR Part #: 75014
    $59.99
    In stock

    The actuator works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

    DATA SHEETStudica Robotics - Linear Servo RC Actuator Data Sheet

    RESOURCES - 3D CAD Files - STEP

    Specifications:

    • Stroke: 140mm
    • Length: 208mm
    • Weight: 96g
    • Extended length: 348mm
    • Gear Ratio: 150:1
    • Speed (no load): 6mm/s
    • Max Force: 190N
    • Stall Torque: 325N
    • Wire length: 340mm
    • Connector: 2.54mm Dupont 3-Pin Female
    • Control Signal: PWM
    • Frequency: 50 HZ
    • Voltage: 6V

    Pulse Width Range

    The linear servos have a different pulse width range than that of normal servos. The range of a normal servo is generally 500μs. to 2500μs. The linear servo has a standard range of 900μs to 2100μs. However, due to tolerances in control, this range generally needs to be manually calibrated per linear servo.

    Actuator

    At full retraction, the pulse width should be around 900μs. Observational measurements have found this value to be between 850μs and 1000μs.

    At full extension, the pulse width should be around 2100μs. Observational measurements have found this value to be between 1890μs and 2150μs.

    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The actuator works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

    DATA SHEETStudica Robotics - Linear Servo RC Actuator Data Sheet

    RESOURCES - 3D CAD Files - STEP

    Specifications:

    • Stroke: 140mm
    • Length: 208mm
    • Weight: 96g
    • Extended length: 348mm
    • Gear Ratio: 150:1
    • Speed (no load): 6mm/s
    • Max Force: 190N
    • Stall Torque: 325N
    • Wire length: 340mm
    • Connector: 2.54mm Dupont 3-Pin Female
    • Control Signal: PWM
    • Frequency: 50 HZ
    • Voltage: 6V

    Pulse Width Range

    The linear servos have a different pulse width range than that of normal servos. The range of a normal servo is generally 500μs. to 2500μs. The linear servo has a standard range of 900μs to 2100μs. However, due to tolerances in control, this range generally needs to be manually calibrated per linear servo.

    Actuator

    At full retraction, the pulse width should be around 900μs. Observational measurements have found this value to be between 850μs and 1000μs.

    At full extension, the pulse width should be around 2100μs. Observational measurements have found this value to be between 1890μs and 2150μs.
