    Linear Servo RC Actuator 50S-40N

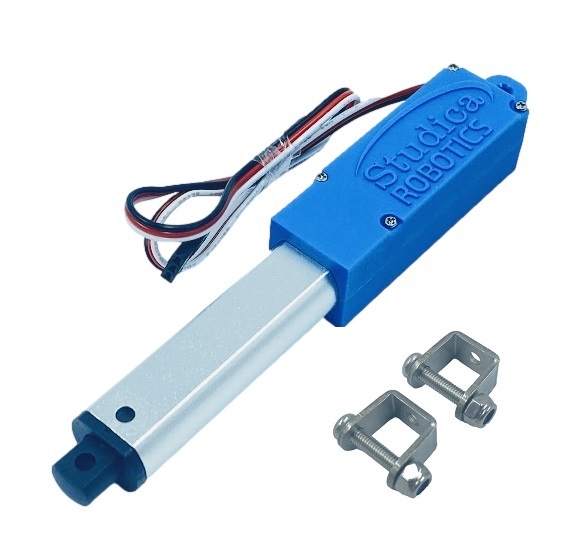

    The Studica Linear Servo RC Actuator 50S-40N is a new Servo motor which has a stroke of 50mm, Max Force load of 50N and stroke spead of 26mm/s. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

    MFR Part #: 75012
    $54.99
    In stock

    Specifications:

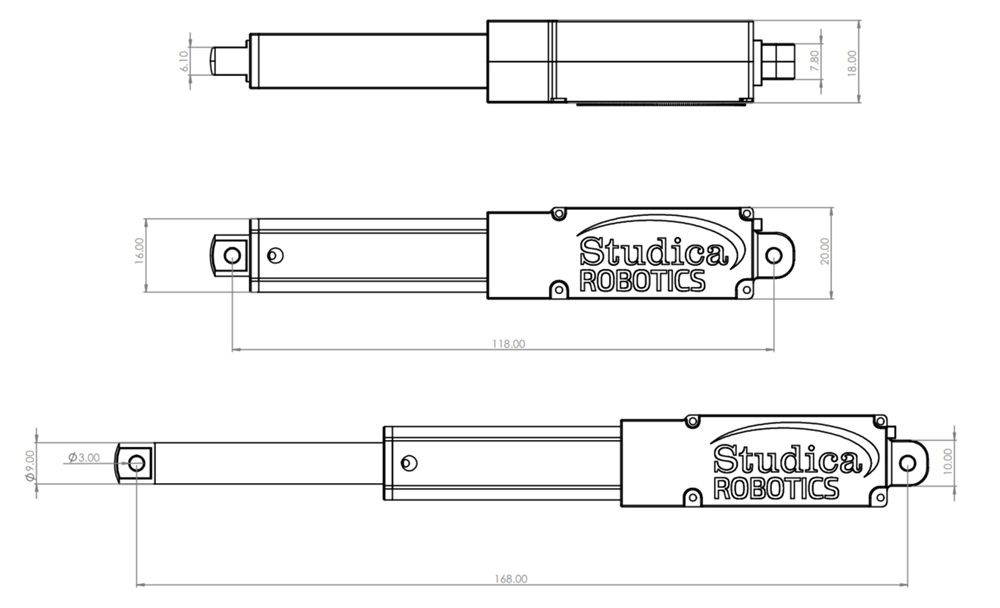

    • Stroke: 50mm
    • Length: 118mm
    • Weight: 65g
    • Extended length: 168mm
    • Gear Ratio: 36:1
    • Speed (no load): 26mm/s
    • Max Force: 40N
    • Stall Torque: 150N
    • Wire length: 340mm
    • Connector: 2.54mm Dupont 3-Pin Female
    • Control Signal: PWM
    • Frequency: 50 HZ
    • Voltage: 6V
    • Data Sheet

    RESOURCES - 3D CAD Files - STEP
