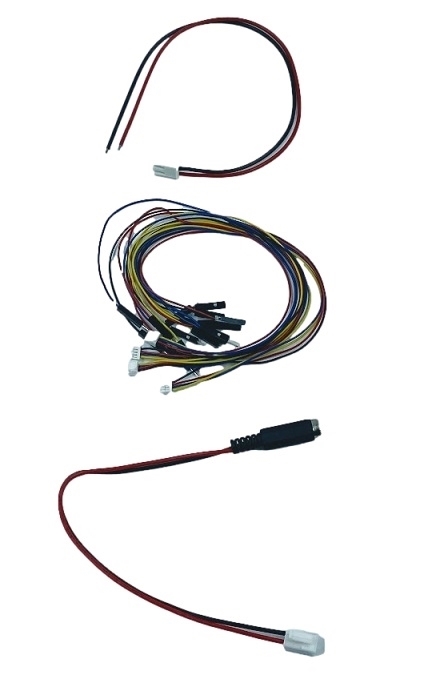

VMX Cable Pack

The Mobile (Autonomous) Robotics VMX/Titan Workshop Kit is used in the classroom for teaching, testing, and doing research in mobile robotics. It includes each of the essential components and is referenced in the WorldSkills Mobile Robotics Shanghai 2022 training material. This is a comprehensive educational resource that harnesses CAN Bus technology for hands-on learning. Note: The color of the Omni wheels included is subject to change based on availability.

• Parts List (View as PDF)

The Studica VMX FRC Training Bot (FRC Trainer) is a smaller, sturdy, lightweight, and less expensive robot than your typical FRC robot. If you have a large FRC team, often only a handful of students get to learn how to create and program your team’s costly competition robot.  The FRC Trainer solves this problem and is ideal for groups of two to three to participate in hands-on learning in a classroom environment.  Schools can equip their labs with multiple FRC Trainers, benefiting from the great value and compact size. Students can even take it home with them!

This affordable solution is intended for:

• FRC teams that want to learn and train on a smaller and more affordable robot,
• Schools looking for a way to teach FRC robotics in the classroom.
• Schools that want to teach coding in the classroom through robotics.

The FRC-compatible Trainer is an intelligent and autonomous robot that uses the VMX Robotics Controller which can be programmed in C++ and Java.  VMX’s multitude of modern digital communications interfaces and Linux-based operating system allow users to directly access most modern devices (e.g., Intel RealSense tracking and depth cameras and LIDAR).

VMX-Pi Key Use Cases and Hardware/Software Features and Benefits
VMI-Pi Key Use Case Document is available here

Download BOM here

Studica accepts Purchase Orders from Schools and established companies, offering net 30 terms upon review and approval. Contact us at [email protected] for more information.

This kit may be used with older structure and most sensors. It includes everything required to connect to the collection and sensors. The only other electronic item required may be the SR-Pro Camera.

Includes,

• VMX Robotics Controller
• Titan Quad Motor Controller
• VMX Cable and Board Pack
• Titan Cable Pack
• Servo Power Block
• Analog Module
• PWM Cable Set

The Studica Robotics VMX (part #70176) is a powerful robotics controller with technology for enabling a rich development environment.  The VMX is a Linux-based computing platform with software tools and features enabling access to cutting-edge sensors.

The VMX Wallwart Barrel Plug Adapter cable connects a VMX power connector to an external 12VDC Wallwart power supply.

Specifications:

• Cable Length: 25 cm
• Wire Gauge: 20 AWG
• VMX-side Connector: JST-VH Wire Colors: Red (power), Black (ground)
• Wallwart-side Barrel Plug adapter:  2.1mm inner diameter, 5.5" outer diameter, center-positive, the

The JST-GH to JST-GH Cable connects external sensors, breakout boards or other devices.

Detailed Specifications:

• Cable Length: 25 cm
• Connectors: 4-pin JST-GH (2)
• Wire Colors: Black, Red, Blue, Green

The VMX Battery Adapter cable connects a VMX-pi power connector to an external battery supply.

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM
