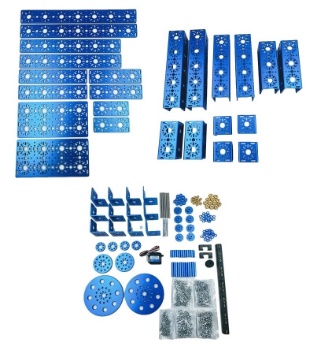

Expansion Kit - Hex-Shaft

Key Features

• Structural U-Channels & Brackets: Multiple sizes of U-channels and flat/L brackets to build rigid frames and mounting surfaces.

• Hex-Shaft Components: Includes hex-shafts, collars, shaft hubs, and spacers for power transmission and motion systems.

• Bearings & Bushings: Flange bearings and bronze bushings reduce friction and support rotating elements.

• Precision Gears: Assorted 32T, 64T, and 128T gears to build customizable gear trains.

• Hardware Packs Included: Large packs of M3 socket head screws, nuts, and standoffs for fast, reliable assembly.

• Multi-Mode Smart Servo: Build and test motion systems right away with an included servo.

Parts Included:

• 2 - 336mm U-Channel  #76012
• 2 - 288mm U-Channel  #76013
• 4 - 144mm U-Channel  #76016
• 4 - 96mm U-Channel  #76017
• 4 - 48mm U-Channel  #76018
• 2 - 336mm x 40mm Flat Bracket  #76060
• 2 - 288mm x 40mm Flat Bracket  #76061
• 2- 192mm x 40mm Flat Bracket  #76063
• 2 - 144mm x 40mm Flat Bracket  #76064
• 2 - 96mm x 40mm Flat Bracket  #76065
• 2 - 192mm x 96mm Flat Bracket #76066
• 6 - L Bracket  #76087
• 6 - Inside L Bracket #76089
• 1 - 6mm x 96mm Hex-Shaft (6 pack) #76161H-6
• 2 - Collar 6mm Hex ID x 12mm OD (6 pack)  #76304H-6
• 2 - 6mm Hex-Shaft Flanged Bearing (12 pack) #76302H-12
• 1 - 6mm Hex Shaft Spacer 1mm, Nylon (24 pack)  #76305H
• 1 - 6mm Hex Shaft Spacer 2mm, Nylon (24 pack)  #76306H
• 2 - 6mm Hex Shaft Hub (4 pack)  #76284H-4
• 2 - 32 Tooth Gear (2 pack)  #76220-2
• 1 - 64 Tooth Gear (2 pack)  #76221-2
• 2 - 128 Tooth Gear  #76222
• 2 - Rack & Pinion #76170H
• 1 - Multi-Mode Smart Servo  #75002
• 1 - M3 x 8mm Socket Head Cap Screw (pack of 100)  #76200-100
• 1 - M3 x 10mm Socket Head Cap Screw (pack of 100)  #76201-100
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  #76202-100
• 1 - M3 x 10mm Button Head Cap Screw (pack of 50)  #76203-50
• 1 - M3 Kep Nut (pack of 100)  #76204-100
• 1 - 25mm Standoff (12 pack)  #76182-12
• 1 - 48mm Standoff (12 pack)  #76181-12
