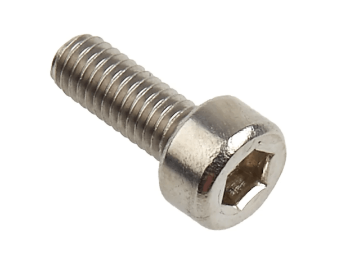

M3 x 10mm Socket Head Cap Screw (100 pack)

GT2-6mm Timing Belt Clamp w/Set Screw

The Studica Robotics Slide Rail is made of 6061 lightweight aluminum, is 24mm wide, and is perfect for linear motion and building a multi-stage slide system. Closed length is 288m, with a 180mm stroke, creating an extended length of 468mm.

The 6mm ID Round Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axles.

The Studica Robotics End Piece Plate (2 pack) is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required.

The Studica Robotics Maverick 12V DC Gear Motor 61:1 w/Encoder is an ideal motor for robotics, designed for strength to endure competitions, with 100rpm and 708 oz-in of torque.

To connect to the REV Robotics Control Hub, the Maverick Encoder Cable (#70163) is required as an Add-on.

Note: This motor is legal for FIRST (FTC) competitions.

The Studica Robotics Motor Mount Plate is used with the Maverick 12V DC Gear Motor to attach to the inside any U-Channels.

The Studica Robotics 6mm D-shaft collar clamp cay be used with the 6mm D-Shape Shaft to secure wheels in their position.

The Studica Robotics 60 Tooth GT2-6mm Timing Belt D-Shaft Pulley can be used with any of the GT2 belts in your robotics builds.

The M3 x 10mm low profile screw with Kep Nut is a 304 Stainless Steel M3 Din 7991 countersunk hex socket flat head screw with a matching Kep Nut. This package is made for the Slide Rail, 288mm Length, 180mm Stroke and the Slide Rail, 384mm Length, 240mm Stroke

The Studica Robotics Intake D-Shaft Hub Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Can be used with the Silicone Rubber Tubing #76410 (sold separately).
